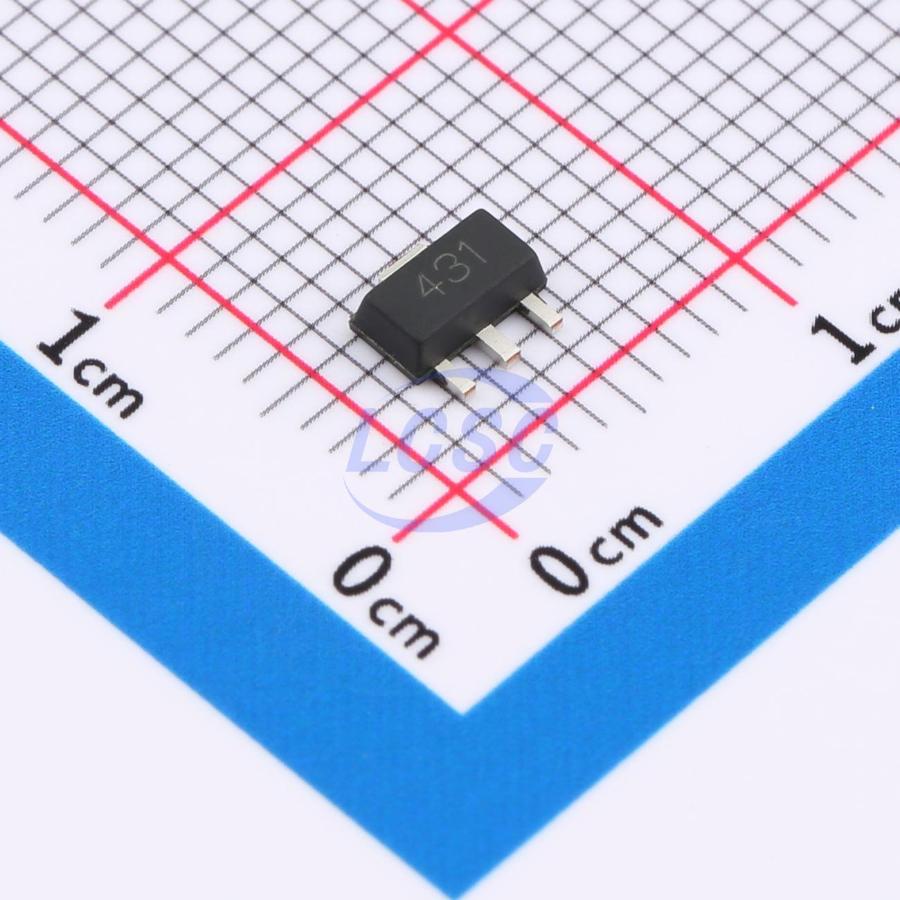

TL431
Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 100mA SOT-89-3
SOT-89-3ROHS CompliantActive
ADJUSTABLE ACCURATE REFERENCE SOURCE
- Manufacturer
- Guangdong Hottech
- Manufacturer part #
- TL431
- Store part #
- C181104
- Package / case
- SOT-89-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,680 in stock
#C181104
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.72 | ₹67.20 |
| 100+ | ₹5.38 | ₹538.00 |
| 300+ | ₹4.71 | ₹1,413.00 |
| 1,000+ | ₹3.56 | ₹3,560.00 |
| 5,000+ | ₹3.15 | ₹15,750.00 |
| 10,000+ | ₹2.95 | ₹29,500.00 |
10 × ₹6.72
₹67.20
excl. GST
₹79.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TL431
₹67.20 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -20℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.144 g
Overview
Applications
- Shunt Regulator
- High-Current Shunt Regulator Precision Current Limiter
Key features
- The effective temperature compensation in the working range of full temperatu
- The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
- The output voltage can be adjusted to 36V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100 mA
- Low output noise voltage
- Fast on-state response
- Surface Mount device
