Guangdong Hottech
TL431Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
From
₹8.07
4,90,080 in stock
FUXINSEMIDatasheet (PDF)

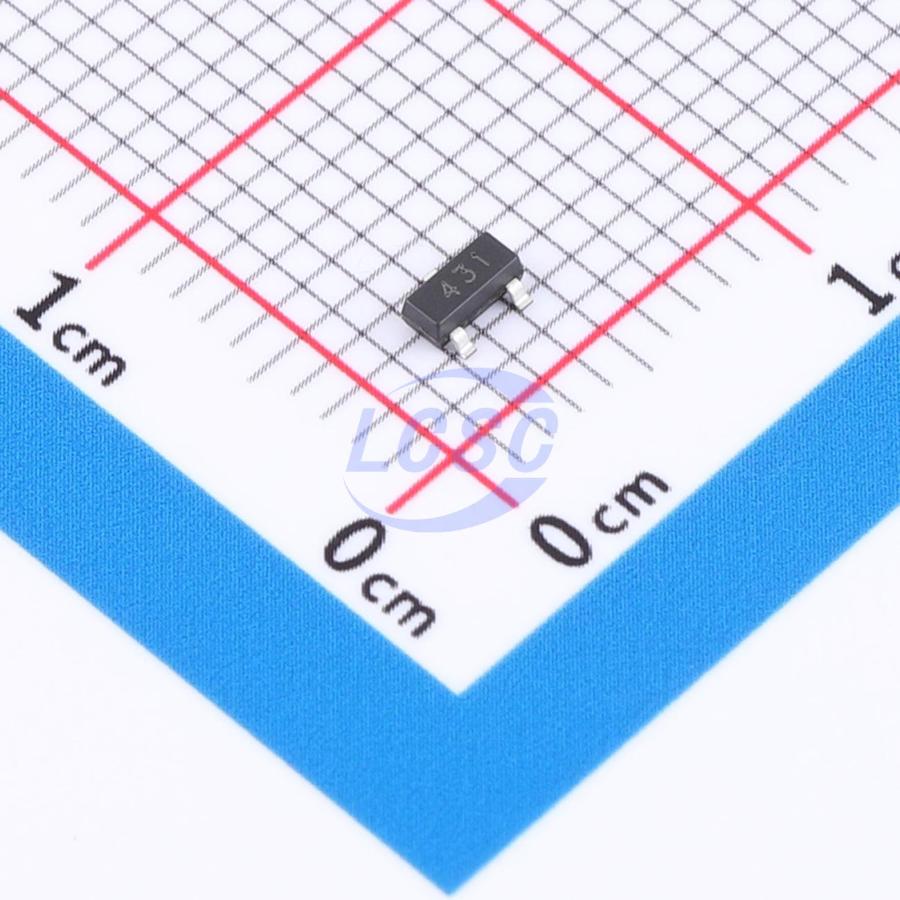

TL431
Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23-3
SOT-23-3RoHSActive
IC VREF SHUNT ADJ ±1% SOT-23-3
- Manufacturer
- FUXINSEMI
- Manufacturer part #
- TL431
- Store part #
- C42435897
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,520 in stock
#C42435897
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.78 | ₹95.60 |
| 200+ | ₹3.72 | ₹744.00 |
| 600+ | ₹3.14 | ₹1,884.00 |
| 3,000+ | ₹2.78 | ₹8,340.00 |
| 9,000+ | ₹2.47 | ₹22,230.00 |
| 21,000+ | ₹2.32 | ₹48,720.00 |
20 × ₹4.78
₹95.60
excl. GST
₹112.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431
₹95.60 for 20 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Quiescent Current
- 1.5uA
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 150mA
- Operating Temperature
- 0℃~+70℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
The TL431 is a three-terminal adjustable shunt regulator offering excellent temperature stability. This device has a typical dynamic output impedance of 0.2Ω. The device can be used as a replacement for zener diodes in many applications.
Applications
- Shunt Regulator
- High-Current Shunt Regulator
- Precision Current Limiter
Key features
- The output voltage can be adjusted to 36V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100mA
- Low output noise voltage
- Fast on -state response
- The effective temperature compensation in the working range of full temperature
- The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
