HXY MOSFETDatasheet (PDF)

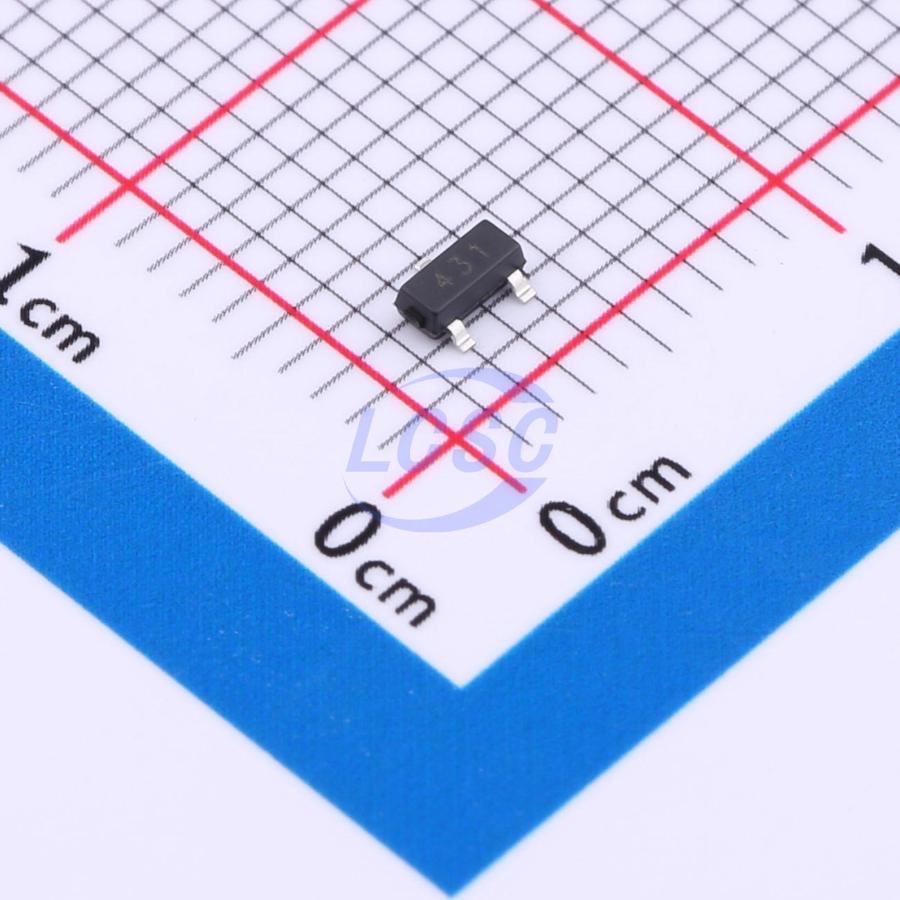

TL431
2.5V~36V ±1% 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
Three-terminal positive voltage regulator
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- TL431
- Store part #
- C5148693
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,520 in stock
#C5148693
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.82 | ₹48.20 |
| 100+ | ₹3.78 | ₹378.00 |
| 300+ | ₹3.20 | ₹960.00 |
| 3,000+ | ₹2.73 | ₹8,190.00 |
| 6,000+ | ₹2.43 | ₹14,580.00 |
| 9,000+ | ₹2.28 | ₹20,520.00 |
10 × ₹4.82
₹48.20
excl. GST
₹56.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431
₹48.20 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 450uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -25℃~+85℃@(Ta)
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
TL431 is a three-terminal adjustable shunt regulator with excellent temperature stability. The device features a typical dynamic output impedance of 0.2Ω. In many applications, it can serve as a drop-in replacement for Zener diodes.
Applications
- Shunt regulator
- High-current shunt regulator
- Precision current limiter
Key features
- Output voltage adjustable up to 36V
- Low dynamic output impedance, typical 0.2Ω
- Notch current capability: 1 to 100mA
- Low output noise voltage
- Fast turn-on response
- Effective temperature compensation over full operating temperature range
- Typical equivalent temperature coefficient over full temperature range: 50 ppm/°C
