High DiodeDatasheet (PDF)

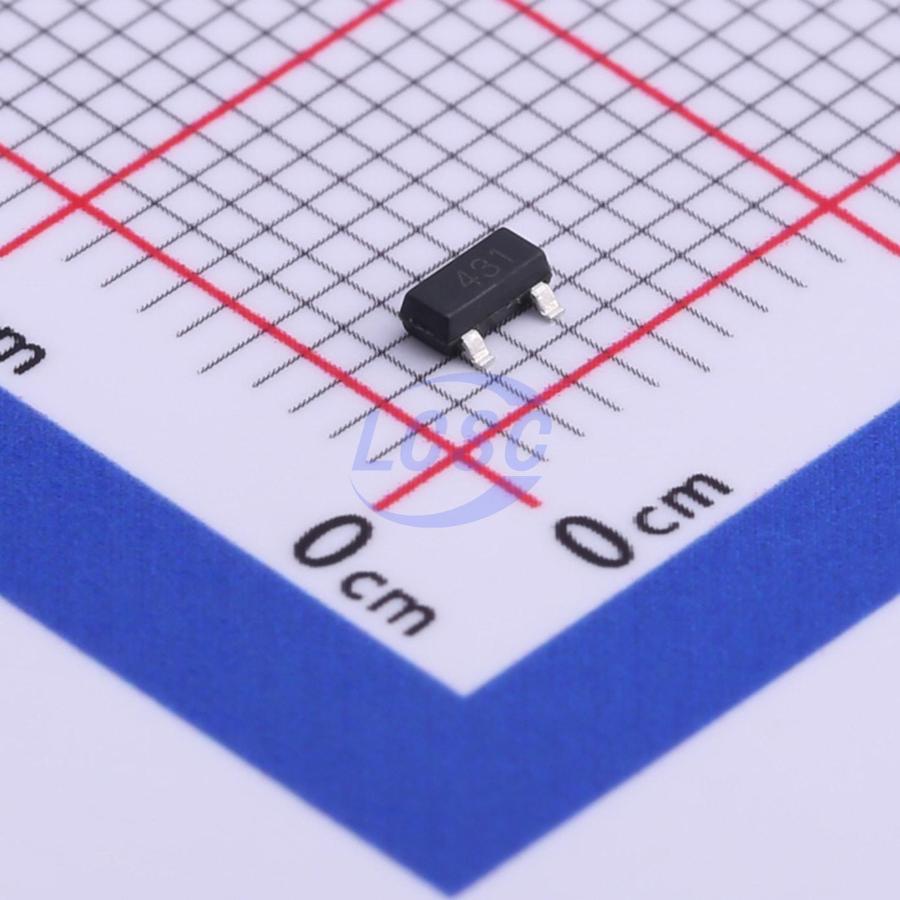

TL431
Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 100mA SOT-23
SOT-23RoHSActive
IC VREF SHUNT ADJ ±1% SOT-23
- Manufacturer
- High Diode
- Manufacturer part #
- TL431
- Store part #
- C571350
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,840 in stock
#C571350
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.79 | ₹47.90 |
| 100+ | ₹3.84 | ₹384.00 |
| 300+ | ₹3.07 | ₹921.00 |
| 1,500+ | ₹2.78 | ₹4,170.00 |
| 4,500+ | ₹2.59 | ₹11,655.00 |
| 10,500+ | ₹2.47 | ₹25,935.00 |
10 × ₹4.79
₹47.90
excl. GST
₹56.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431
₹47.90 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Voltage - Supply
- 37V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -25℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The TL431 is a three-terminal adjustable shunt regulator offering excellent temperature stability. This device has a typical dynamic output impedance of 0.2Ω. The device can be used as a replacement for zener diodes in many applications.
Applications
- Shunt Regulator
- High-Current Shunt Regulator
- Precision Current Limiter
Key features
- The output voltage can be adjusted to 36V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100mA
- Low output noise voltage
- Fast on -state response
- The effective temperature compensation in the working range of full temperature
- The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
