LGEDatasheet (PDF)

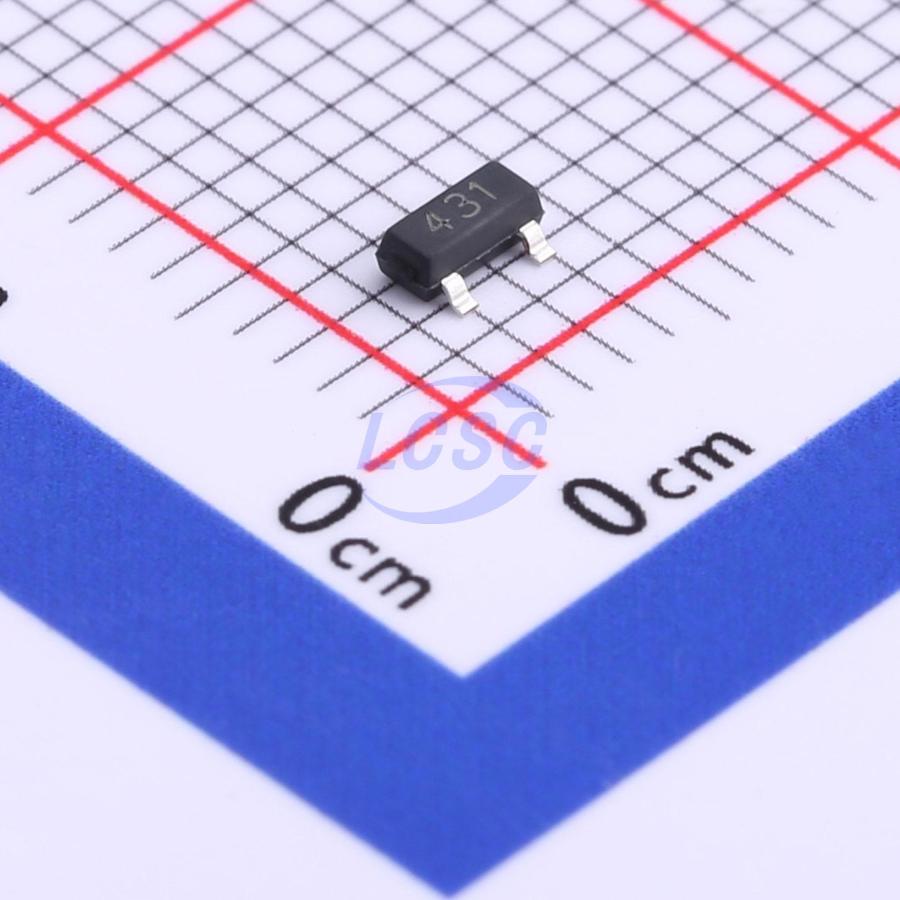

TL431
Voltage Reference IC Adjustable 2.5V~36V ±2% 150mA SOT-23
SOT-23RoHSActive
Adjustable Accurate Reference Source
- Manufacturer
- LGE
- Manufacturer part #
- TL431
- Store part #
- C713689
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,210 in stock
#C713689
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.58 | ₹65.80 |
| 100+ | ₹5.13 | ₹513.00 |
| 300+ | ₹4.42 | ₹1,326.00 |
| 3,000+ | ₹3.88 | ₹11,640.00 |
| 6,000+ | ₹3.45 | ₹20,700.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹6.58
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431
₹65.80 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±2%
- Voltage - Supply
- 37V
- Minimum Cathode Current for Regulation
- 1mA
- Output Current
- 150mA
- Operating Temperature
- 0℃~+70℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Key features
- The output voltage can be adjusted to 36V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100 mA
- The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
- The effective temperature compensation in the working range of full temperature
- Low output noise voltage
- Fast on - state response
