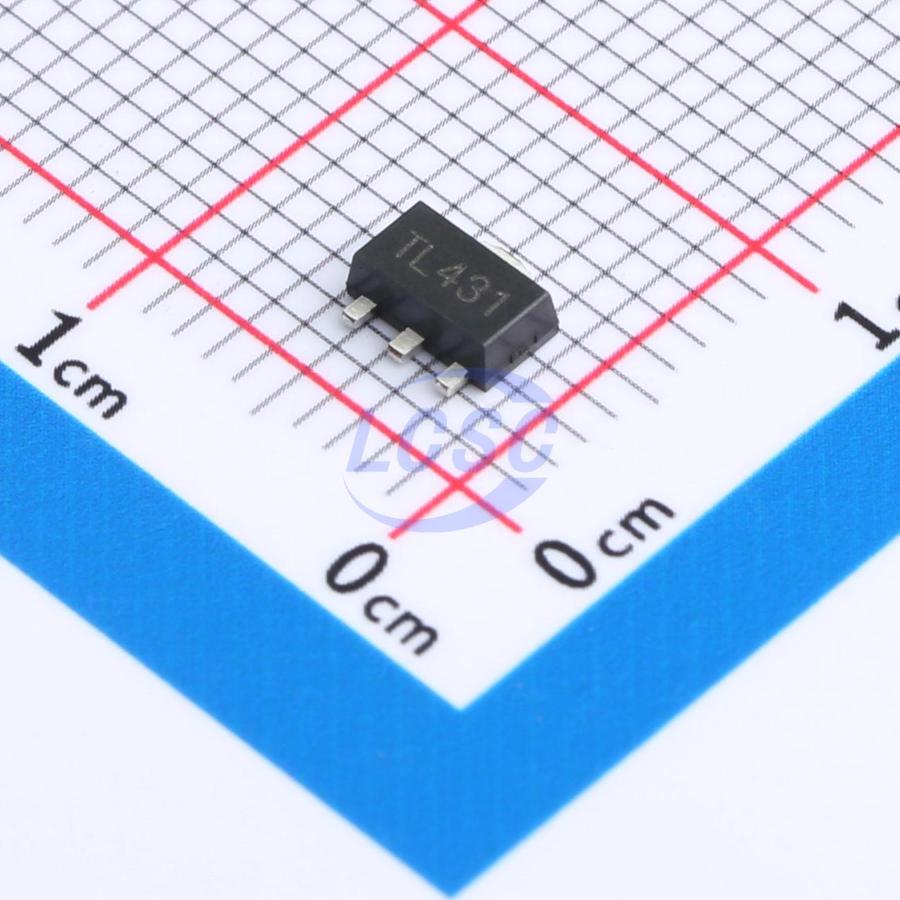

TL431
Voltage Reference IC Adjustable 36V ±2% 150mA SOT-89
SOT-89RoHSActive
Adjustable Accurate Reference
- Manufacturer
- LGE
- Manufacturer part #
- TL431
- Store part #
- C7425381
- Package / case
- SOT-89
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,510 in stock
#C7425381
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.20 | ₹82.00 |
| 100+ | ₹6.48 | ₹648.00 |
| 300+ | ₹5.62 | ₹1,686.00 |
| 1,000+ | ₹4.97 | ₹4,970.00 |
| 5,000+ | ₹4.47 | ₹22,350.00 |
| 10,000+ | ₹4.21 | ₹42,100.00 |
10 × ₹8.20
₹82.00
excl. GST
₹96.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TL431
₹82.00 for 10 + GST
Specifications
- Quiescent Current
- 1.5uA
- Output Voltage
- 36V
- Tolerance
- ±2%
- Minimum Cathode Current for Regulation
- 100mA
- Reference Type
- Parallel
- Output Current
- 150mA
- Operating Temperature
- 0℃~+70℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.122 g
Overview
Key features
- The output voltage can be adjusted to 36V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100mA
- The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
- The effective temperature compensation in the working range of full temperature
- Low output noise voltage
- Fast on - state respons
