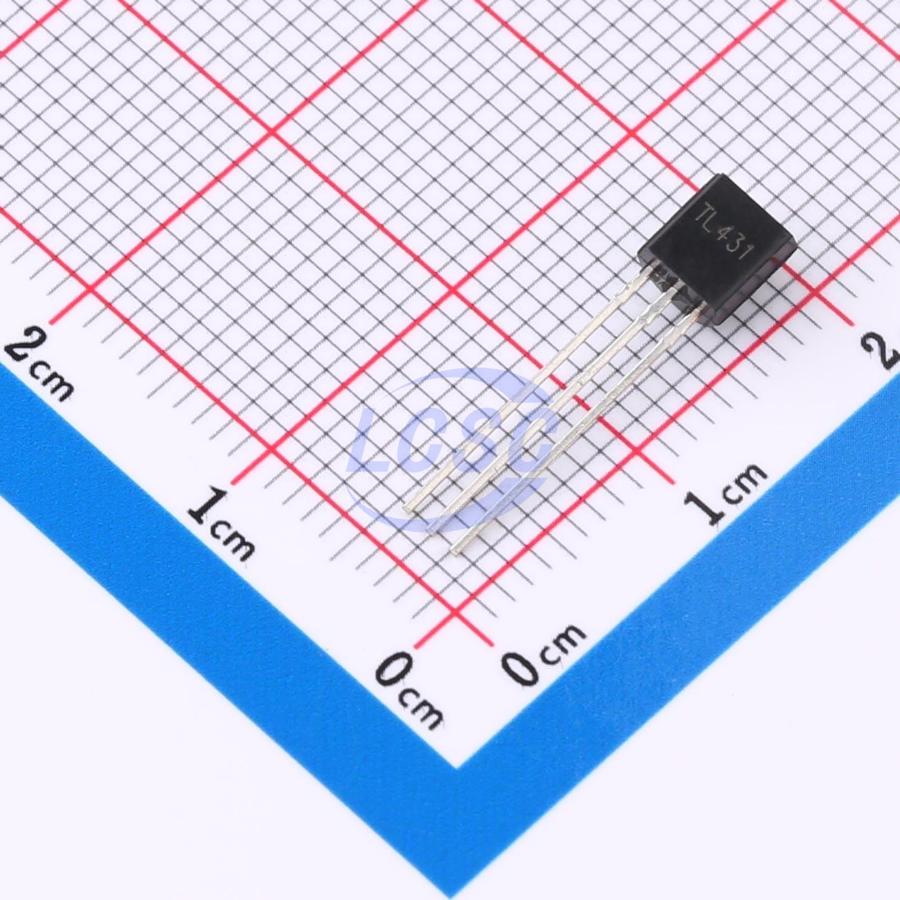

TL431(TO92)-TD
Shunt Voltage Reference IC Adjustable 2.5V~36V ±0.5% 100mA TO-92
TO-92ROHS CompliantActive
Three-terminal adjustable shunt regulator
- Manufacturer
- TDSEMIC
- Manufacturer part #
- TL431(TO92)-TD
- Store part #
- C42422103
- Package / case
- TO-92
- Category
- Voltage Reference
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C42422103
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.33 | ₹106.60 |
| 200+ | ₹4.17 | ₹834.00 |
| 1,000+ | ₹3.52 | ₹3,520.00 |
| 2,000+ | ₹3.12 | ₹6,240.00 |
| 10,000+ | ₹2.79 | ₹27,900.00 |
| 20,000+ | ₹2.61 | ₹52,200.00 |
20 × ₹5.33
₹106.60
excl. GST
₹125.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
TL431(TO92)-TD
₹106.60 for 20 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 240uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -25℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.175 g
Overview
TL431 is a three-terminal adjustable shunt voltage regulator with guaranteed thermal stability over its entire operating range. It features fast turn-on characteristics, low temperature coefficient, and low output impedance, making it an ideal replacement for Zener diodes in applications such as switching power supplies, chargers, and other adjustable voltage regulators. The output voltage of the TL431 can be set to any value between Vref (2.5V) and the corresponding maximum cathode voltage (36V). The device is offered in two initial voltage accuracy grades: 0.5% and 1% at 25°C. The IC is available in two packages: TO-92 and SOT-23.
Applications
- Charger
- Voltage Adapter
- Switching Power Supply
- Graphics Card
- Precision Voltage Reference
Key features
- Programmable precise output voltage: 2.5V to 36V
- Highly stable with capacitive loads
- Low minimum cathode operating current: 240μA (typical)
- Low temperature drift: 5mV (typical)
- Current capability: 240μA to 100mA
- Wide operating temperature range: -25°C ~ 125°C
