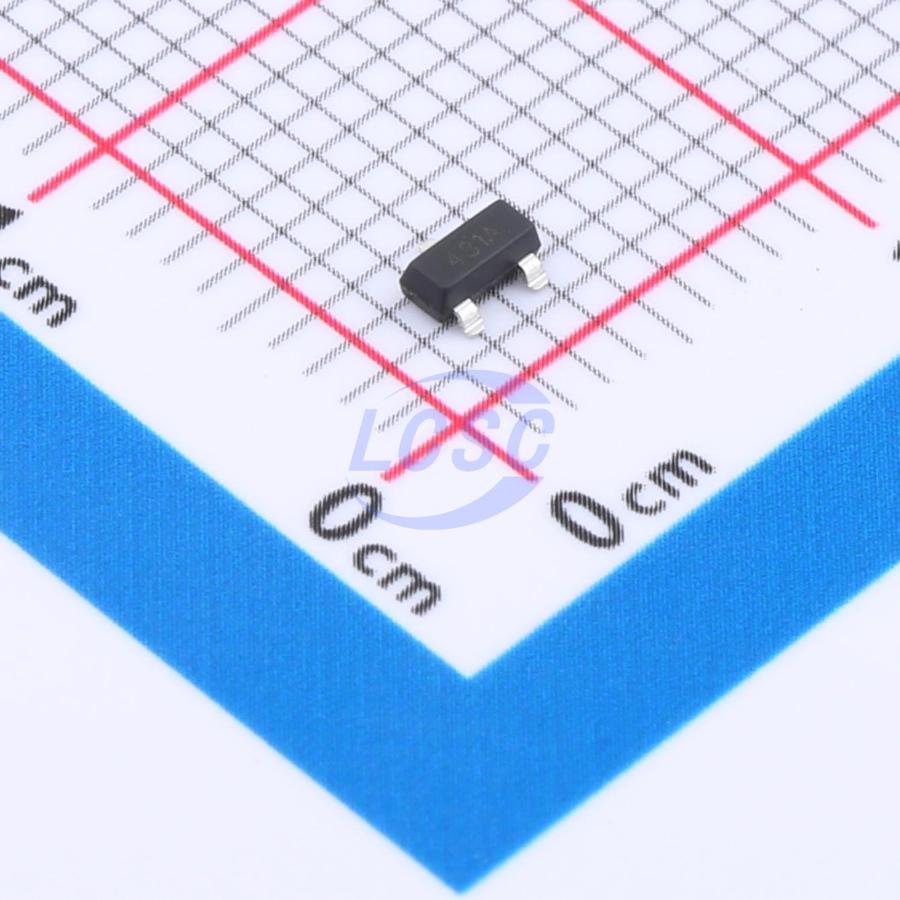

YFW

TL431A 0.4%

2.5V~36V ±0.4% 100mA Adjustable SOT-23 Voltage Reference RoHS

SOT-23ROHS CompliantActive

Manufacturer: YFW
Manufacturer part #: TL431A 0.4%
Store part #: C5444242
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,650 in stock

#C5444242

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
10+	₹6.93	₹69.30
100+	₹5.48	₹548.00
300+	₹4.75	₹1,425.00
3,000+	₹4.23	₹12,690.00
6,000+	₹3.80	₹22,800.00
9,000+	₹3.57	₹32,130.00

Quantity (min 10, multiples of 10)

10 × ₹6.93

₹69.30

excl. GST

₹81.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TL431A 0.4%

₹69.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.5V~36V
Tolerance: ±0.4%
Minimum Cathode Current for Regulation: 1mA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -40℃~+125℃
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview

TL431/TL431S is a three-terminal adjustable shunt regulator with specified thermal stability. The output voltage can be set to any value between Vref and 36V using two external resistors. The active output circuit provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications.
