NexperiaDatasheet (PDF)

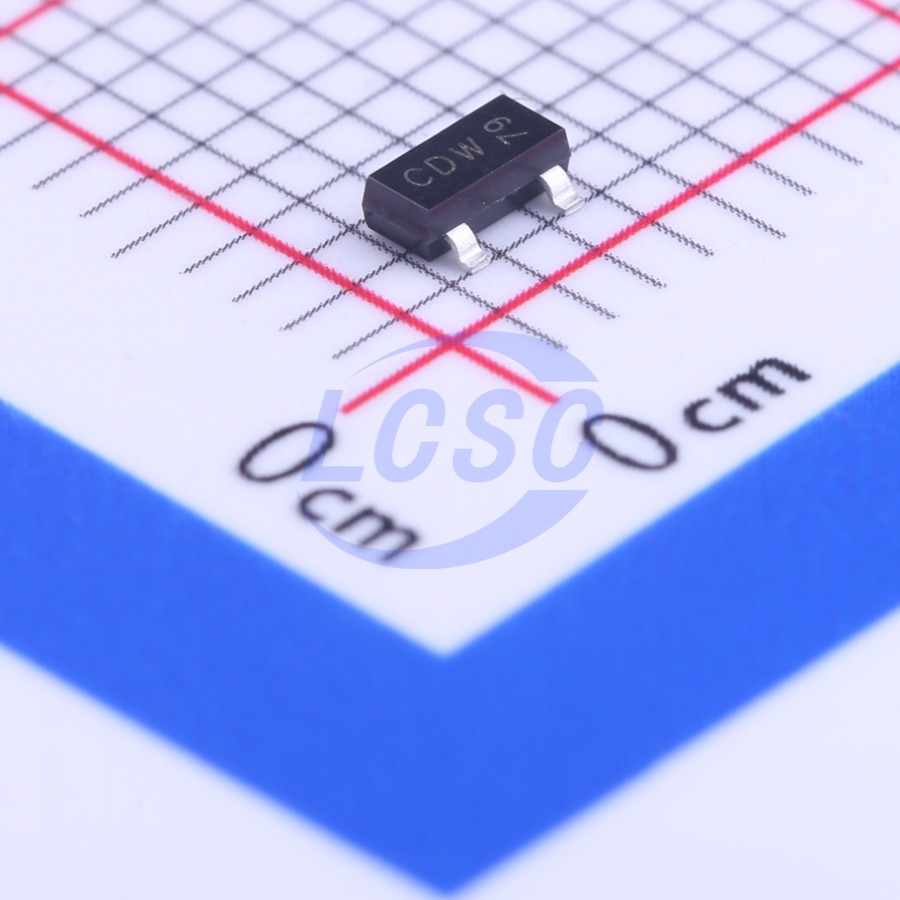

TL431ACDBZR,215
2.495V~36V ±1% 2.495V~36V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Adjustable Precision Shunt Regulators
- Manufacturer
- Nexperia
- Manufacturer part #
- TL431ACDBZR,215
- Store part #
- C131682
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,855 in stock
#C131682
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.96 | ₹129.80 |
| 50+ | ₹20.41 | ₹1,020.50 |
| 150+ | ₹18.05 | ₹2,707.50 |
| 500+ | ₹15.08 | ₹7,540.00 |
| 3,000+ | ₹13.76 | ₹41,280.00 |
| 6,000+ | ₹12.98 | ₹77,880.00 |
5 × ₹25.96
₹129.80
excl. GST
₹153.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431ACDBZR,215
₹129.80 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- 0℃~+70℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Three-terminal shunt regulator family with an output voltage range between Vref = 2.495 V and 36 V, to be set by two external resistors.
Applications
- Shunt regulator
- Precision current limiter
- Precision constant current sink
- Isolated feedback loop for Switch Mode Power Supply (SMPS)
Key features
- Programmable output voltage up to 36 V
- Three different reference voltage tolerances: Standard grade: 2 %; A-Grade: 1 %; B-Grade: 0.5 %
- Typical temperature drift: 9mV (in a range of 0 °C up to 70 °C)
- Low output noise
- Typical output impedance: 0.2 Ω
- Sink current capability: 1 mA to 100 mA
- AEC-Q100 qualified (grade 1)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL432ACM3/TR#C19193482HGSEMI · SOT-23-3 | HGSEMI | SOT-23-3 | 2,820 | ₹7.04 · 2,820 in stock | View |
 | TL431ASA-7#C145101DIODES · SOT-23 | DIODES | SOT-23 | 5,175 | ₹26.50 · 5,175 in stock | View |
 | TL431AIDBZRG4#C2156694TI · SOT-23-3 | TI | SOT-23-3 | 3,668 | ₹15.28 · 3,668 in stock | View |
 | TL431ACDBZR#C350683TI · SOT-23-3 | TI | SOT-23-3 | 1,35,390 | ₹32.80 · 1,35,390 in stock | View |
 | TL432AQDBZR#C352991TI · SOT-23-3 | TI | SOT-23-3 | 1,000 | ₹40.36 · 1,000 in stock | View |
