ChipNoboDatasheet (PDF)

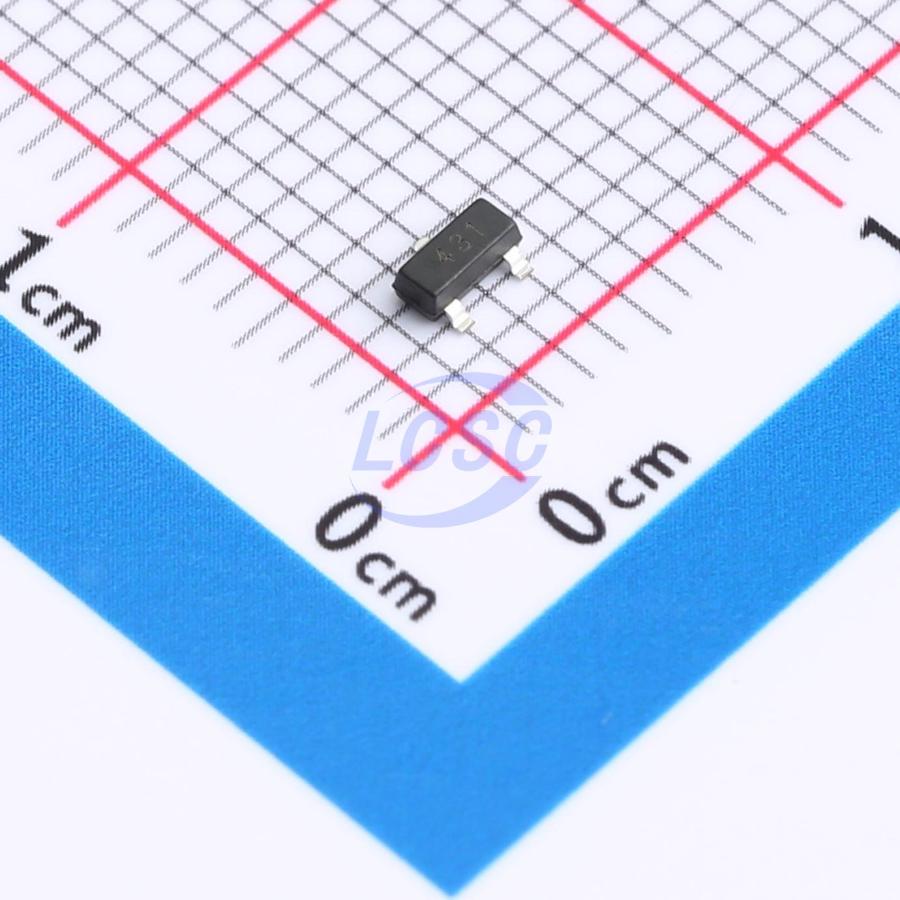

TL431ACDBZR-CN
Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
SOT-23ROHS CompliantActive
SOT-23 Adjustable Precision Reference Source
- Manufacturer
- ChipNobo
- Manufacturer part #
- TL431ACDBZR-CN
- Store part #
- C42419990
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C42419990
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.90 | ₹98.00 |
| 200+ | ₹3.78 | ₹756.00 |
| 600+ | ₹3.18 | ₹1,908.00 |
| 3,000+ | ₹2.92 | ₹8,760.00 |
| 9,000+ | ₹2.59 | ₹23,310.00 |
| 21,000+ | ₹2.42 | ₹50,820.00 |
20 × ₹4.90
₹98.00
excl. GST
₹115.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431ACDBZR-CN
₹98.00 for 20 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 150mA
- Operating Temperature
- -25℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.093 g
Overview
TL431ACDBZR-CN is a three-terminal adjustable shunt regulator with excellent temperature stability. The device features a typical dynamic output impedance of 0.2Ω. In many applications, it can serve as a drop-in replacement for Zener diodes.
Applications
- Shunt regulator
- High-current shunt regulator
- Precision current limiter
Key features
- Output voltage adjustable up to 96V
- Low dynamic output impedance, typical value 0.2Ω
- Sink current capability: 1 to 100mA
- Low output noise voltage
- Fast turn-on response
- Effective temperature compensation over full operating temperature range
- Typical equivalent temperature coefficient of 50 ppm/°C over full temperature range
