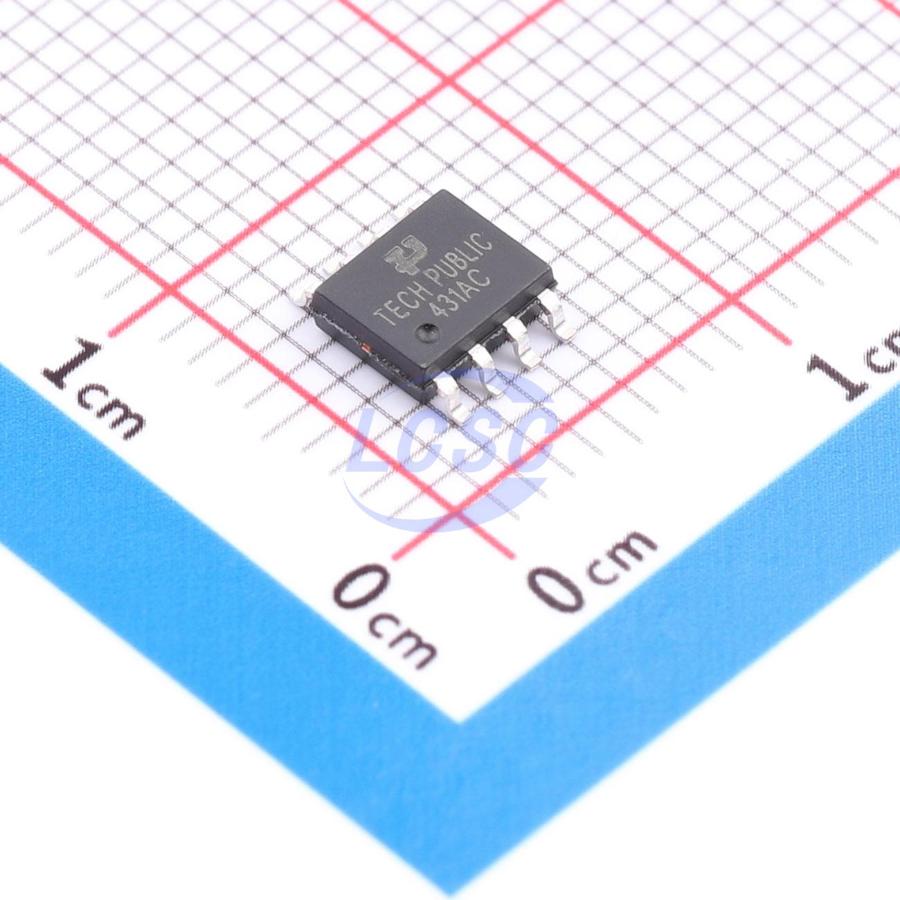

TL431ACDR-TP
Shunt Voltage Reference IC Adjustable 2.495V~36V ±1% 100mA SOP-8
SOP-8RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TL431ACDR-TP
- Store part #
- C48995550
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C48995550
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.16 | ₹81.60 |
| 100+ | ₹6.46 | ₹646.00 |
| 300+ | ₹5.61 | ₹1,683.00 |
| 2,500+ | ₹4.96 | ₹12,400.00 |
| 5,000+ | ₹4.45 | ₹22,250.00 |
| 10,000+ | ₹4.19 | ₹41,900.00 |
10 × ₹8.16
₹81.60
excl. GST
₹96.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL431ACDR-TP
₹81.60 for 10 + GST
Specifications
- Quiescent Current
- 700nA
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.211 g
Overview
This device is a three-terminal adjustable shunt regulator that allows the output voltage to be set to any value between the reference voltage (approximately 2.495V) and 36V using two external resistors. These devices feature an output impedance of 0.15Ω (typical). The active output circuit provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in numerous applications. Such applications include on-board voltage regulation, adjustable power supplies, and switching power supplies.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Secondary-side voltage regulation in flyback switching power supplies
Key features
- Adjustable output voltage range: 2.495V~36V
- Low dynamic output resistance: 0.15Ω (typical)
- Low temperature drift: 5mV (typical)
- Low output noise
- High stability with capacitive loads
- Current capacity range: 1~100mA
- Accuracy: 1%
- Package: SOP8
