TL431Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
From
₹8.07
4,90,080 in stock
TECH PUBLICDatasheet (PDF)

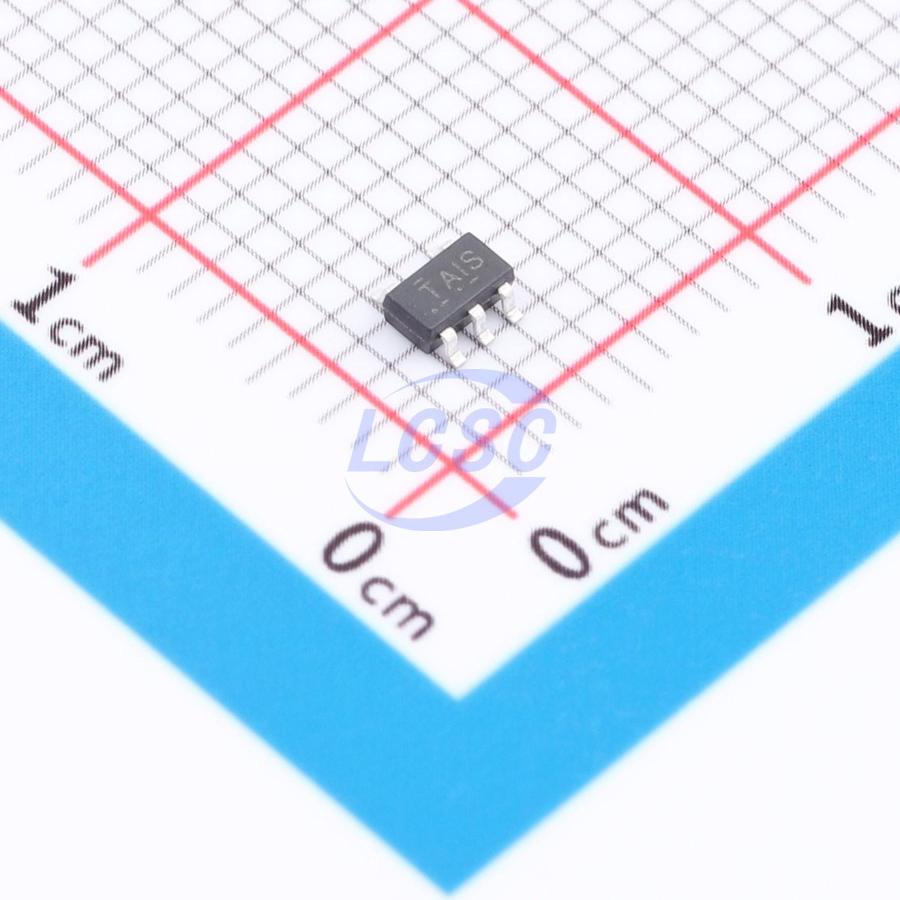

TL431AIDBVR-TP
Shunt Voltage Reference IC Adjustable 2.495V~36V ±1% 100mA SOT-23-5
SOT-23-5RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TL431AIDBVR-TP
- Store part #
- C48995553
- Package / case
- SOT-23-5
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C48995553
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.16 | ₹81.60 |
| 100+ | ₹6.46 | ₹646.00 |
| 300+ | ₹5.61 | ₹1,683.00 |
| 3,000+ | ₹4.96 | ₹14,880.00 |
| 6,000+ | ₹4.45 | ₹26,700.00 |
| 9,000+ | ₹4.19 | ₹37,710.00 |
10 × ₹8.16
₹81.60
excl. GST
₹96.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431AIDBVR-TP
₹81.60 for 10 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 350uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
This device is a three-terminal adjustable shunt regulator whose output voltage can be set to any value between Vref (approximately 2.495V) and 36V using two external resistors. It features a typical output impedance of 0.15 Ω. The active output circuit provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in a wide range of applications, including on-board voltage regulation, adjustable power supplies, and power-on/power-off control.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Secondary-side voltage regulation in flyback switching mode power supplies
Key features
- Adjustable output voltage range: 2.495V~36V
- Low dynamic output resistance: 0.15 Ω (typical)
- Low temperature drift: 5 mV (typical)
- Low output noise
- High stability with capacitive loads
- Current capacity range: 1~100 mA
- Accuracy: 1%
- Package: SOT23-5
