NexperiaDatasheet (PDF)

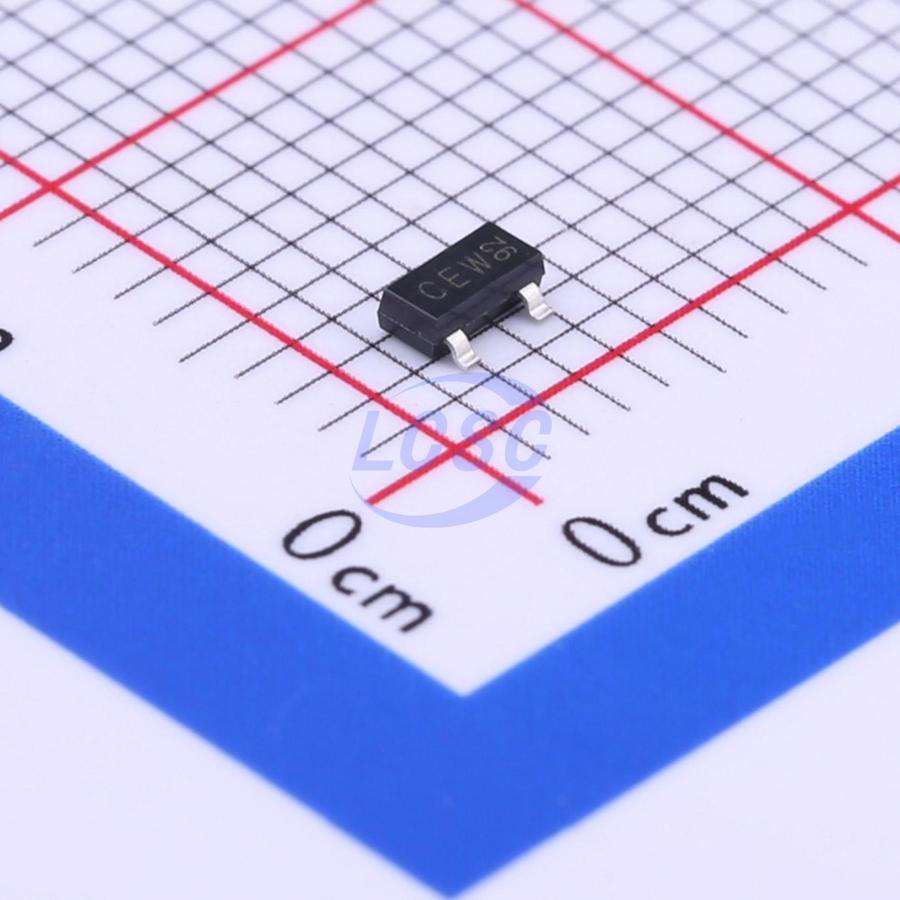

TL431AIDBZR,215
2.495V~36V ±1% 2.495V~36V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantDiscontinued
Adjustable precision shunt regulators
- Manufacturer
- Nexperia
- Manufacturer part #
- TL431AIDBZR,215
- Store part #
- C79737
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,690 in stock
#C79737
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.55 | ₹102.75 |
| 50+ | ₹15.94 | ₹797.00 |
| 150+ | ₹13.97 | ₹2,095.50 |
| 500+ | ₹11.51 | ₹5,755.00 |
| 3,000+ | ₹10.43 | ₹31,290.00 |
| 6,000+ | ₹9.76 | ₹58,560.00 |
5 × ₹20.55
₹102.75
excl. GST
₹121.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431AIDBZR,215
₹102.75 for 5 + GST
Specifications
- Quiescent Current
- 2uA
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Three-terminal shunt regulator family with an output voltage range between Vref = 2.495 V and 36 V, to be set by two external resistors.
Applications
- Shunt regulator
- Precision current limiter
- Precision constant current sink
- Isolated feedback loop for Switch Mode Power Supply (SMPS)
Key features
- Programmable output voltage up to 36 V
- Three different reference voltage tolerances: Standard grade: 2 %; A-Grade: 1 %; B-Grade: 0.5 %
- Typical temperature drift: 9mV (in a range of 0 °C up to 70 °C)
- Low output noise
- Typical output impedance: 0.2 Ω
- Sink current capability: 1 mA to 100 mA
- AEC-Q100 qualified (grade 1)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL431AIDBZRG4#C2156694TI · SOT-23-3 | TI | SOT-23-3 | 3,668 | ₹15.28 · 3,668 in stock | View |
 | LM431BIM3/TR#C7432134HGSEMI · SOT-23-3 | HGSEMI | SOT-23-3 | 2,400 | ₹4.92 · 2,400 in stock | View |
| AiP432GA23.TR#C52268480Wuxi I-core Elec · SOT-23 | Wuxi I-core Elec | SOT-23 | 500 | ₹9.53 · 500 in stock | View | |
 | TL431QDBZR-JSM#C53114008JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 4,450 | ₹13.27 · 4,450 in stock | View |
| TL431AIM3/TR#C30170091HGSEMI · SOT-23 | HGSEMI | SOT-23 | 2,040 | ₹4.90 · 2,040 in stock | View | |
