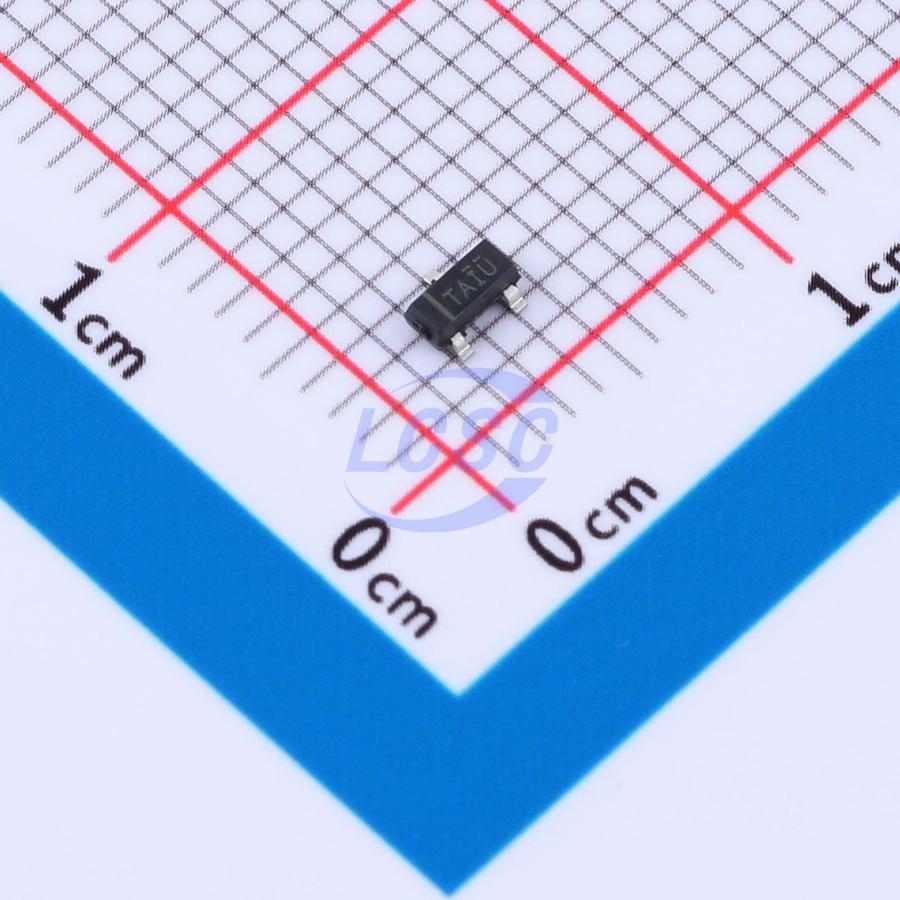

TL431Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
From
₹8.07
4,89,020 in stock
JSMSEMIDatasheet (PDF)
TL431AIDBZR,215-JSM
2.5V~36V ±1% 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- TL431AIDBZR,215-JSM
- Store part #
- C53114141
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C53114141
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.90 | ₹78.00 |
| 200+ | ₹3.06 | ₹612.00 |
| 600+ | ₹2.59 | ₹1,554.00 |
| 3,000+ | ₹2.30 | ₹6,900.00 |
| 9,000+ | ₹2.05 | ₹18,450.00 |
| 21,000+ | ₹1.92 | ₹40,320.00 |
20 × ₹3.90
₹78.00
excl. GST
₹92.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431AIDBZR,215-JSM
₹78.00 for 20 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Overview
The TL431 series ICs are three-terminal adjustable shunt regulators with guaranteed thermal stability over the full operating range. These devices feature sharp turn-on characteristics, low temperature drift, and low output impedance, making them ideal replacements for Zener diodes in applications such as switching power supplies, chargers, and other adjustable regulators. The output voltage can be set to any value between VREF (2.5V) and the maximum cathode voltage (36V). The TL431 precision voltage reference offers two voltage tolerance options: 0.5% and 1.0%. The device is available in the SOT-23 package.
Applications
- Charger
- Voltage adapter
- Switching power supply
- Graphics card
- Precision voltage reference
Key features
- Programmable precision output voltage range: 2.5V to 36V
- High stability with capacitive loads
- Low temperature drift: 4.5mV typical
- Low equivalent full-range temperature coefficient: 20PPM/℃ typical
- Low dynamic output impedance: 0.15Ω typical
- Sink current capability: 1mA to 100mA
- Low output noise
- Wide operating temperature range: -40℃ to 85℃
