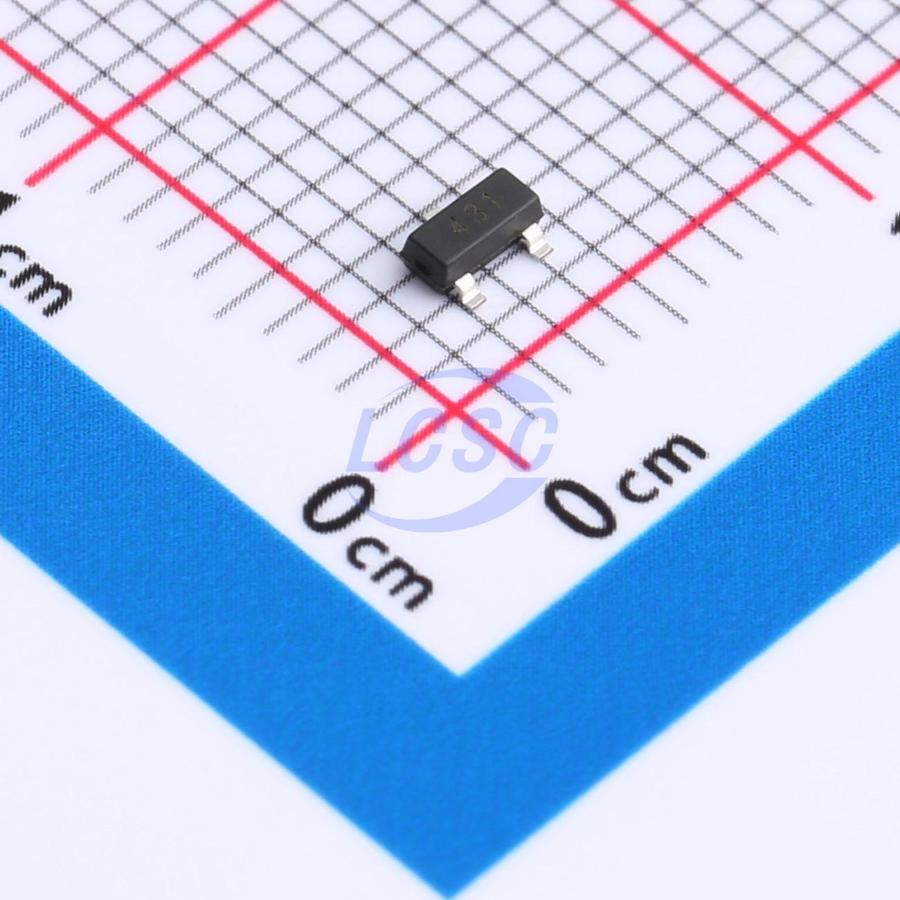

TL431AQDBZR-CN
Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
SOT-23ROHS CompliantActive
SOT-23 Adjustable Accurate Reference Source
- Manufacturer
- ChipNobo
- Manufacturer part #
- TL431AQDBZR-CN
- Store part #
- C42419991
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,010 in stock
#C42419991
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.86 | ₹78.60 |
| 100+ | ₹6.22 | ₹622.00 |
| 300+ | ₹5.40 | ₹1,620.00 |
| 3,000+ | ₹4.78 | ₹14,340.00 |
| 6,000+ | ₹4.29 | ₹25,740.00 |
| 9,000+ | ₹4.04 | ₹36,360.00 |
10 × ₹7.86
₹78.60
excl. GST
₹92.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431AQDBZR-CN
₹78.60 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 150mA
- Operating Temperature
- -25℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.093 g
Overview
TL431AQDBZR-CN is a three-terminal adjustable shunt regulator with excellent temperature stability. The device features a typical dynamic output impedance of 0.2Ω. In many applications, it can serve as a drop-in replacement for Zener diodes.
Applications
- Shunt Regulator
- High-Current Shunt Regulator
- Precision Current Limiter
Key features
- Output voltage adjustable up to 96V
- Low dynamic output impedance, typical value 0.2Ω
- Sink current capability 1 to 100mA
- Low output noise voltage
- Fast turn-on response
- Effective temperature compensation over full operating temperature range
- Typical equivalent temperature coefficient of 50 ppm/°C over full temperature range
