MSKSEMIDatasheet (PDF)

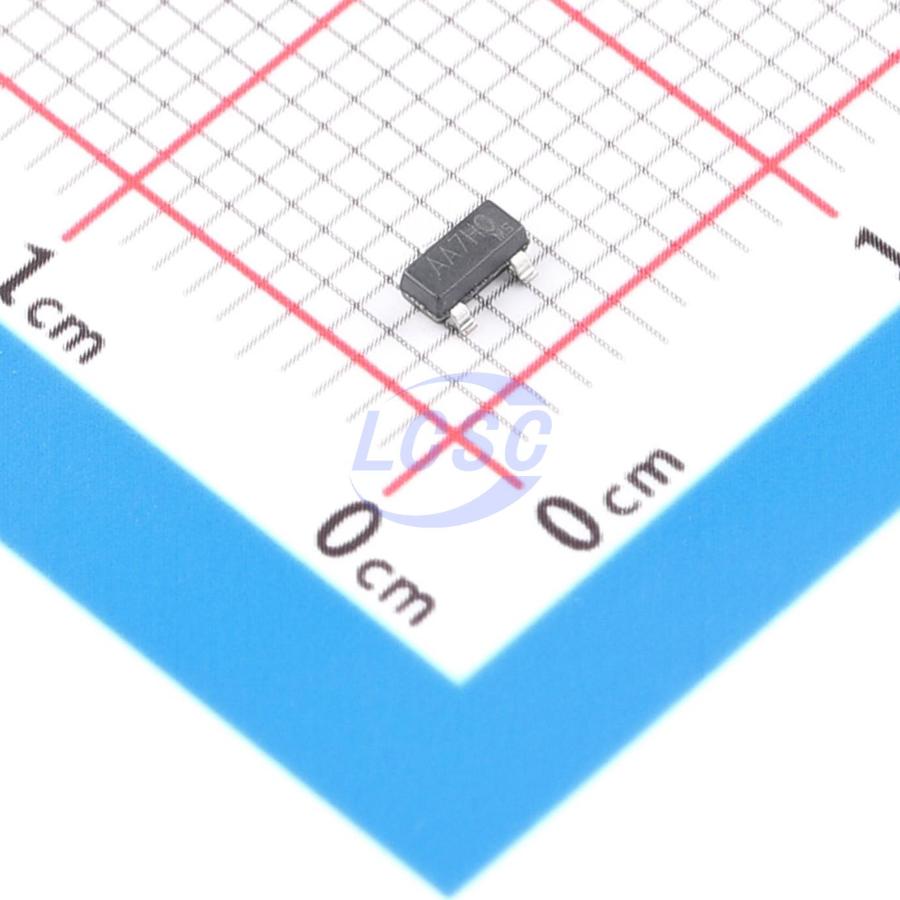

TL431ASA-7-MS
2.495V~40V 2.495V~36V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TL431ASA-7-MS
- Store part #
- C52988880
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C52988880
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.58 | ₹55.80 |
| 100+ | ₹4.43 | ₹443.00 |
| 300+ | ₹3.86 | ₹1,158.00 |
| 3,000+ | ₹3.43 | ₹10,290.00 |
| 6,000+ | ₹3.08 | ₹18,480.00 |
| 9,000+ | ₹2.91 | ₹26,190.00 |
10 × ₹5.58
₹55.80
excl. GST
₹65.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431ASA-7-MS
₹55.80 for 10 + GST
Specifications
- Output Voltage
- 2.495V~40V
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 250uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
TL431ASxx - xx - MS is a series of three-terminal adjustable voltage regulators with guaranteed thermal stability over the applicable temperature range. The output voltage can be set to any value between the reference voltage (approximately 2.5 V) and 40 V using two external resistors. The typical dynamic output impedance of these devices is 0.2 Ω. The active output circuit features a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications.
Key features
- Programmable output voltage up to 36V
- Low dynamic output impedance 0.27Ω (typical)
- Sink current capability: 0.1 mA to 100 mA
- Equivalent full-range temperature coefficient: 50 ppm/℃
- Temperature compensated over full rated operating temperature range
- Low output noise voltage
- Fast turn-on response
- TO-92, SOP-8, SOT-89-3, or SOT-23 package
