Guangdong Hottech

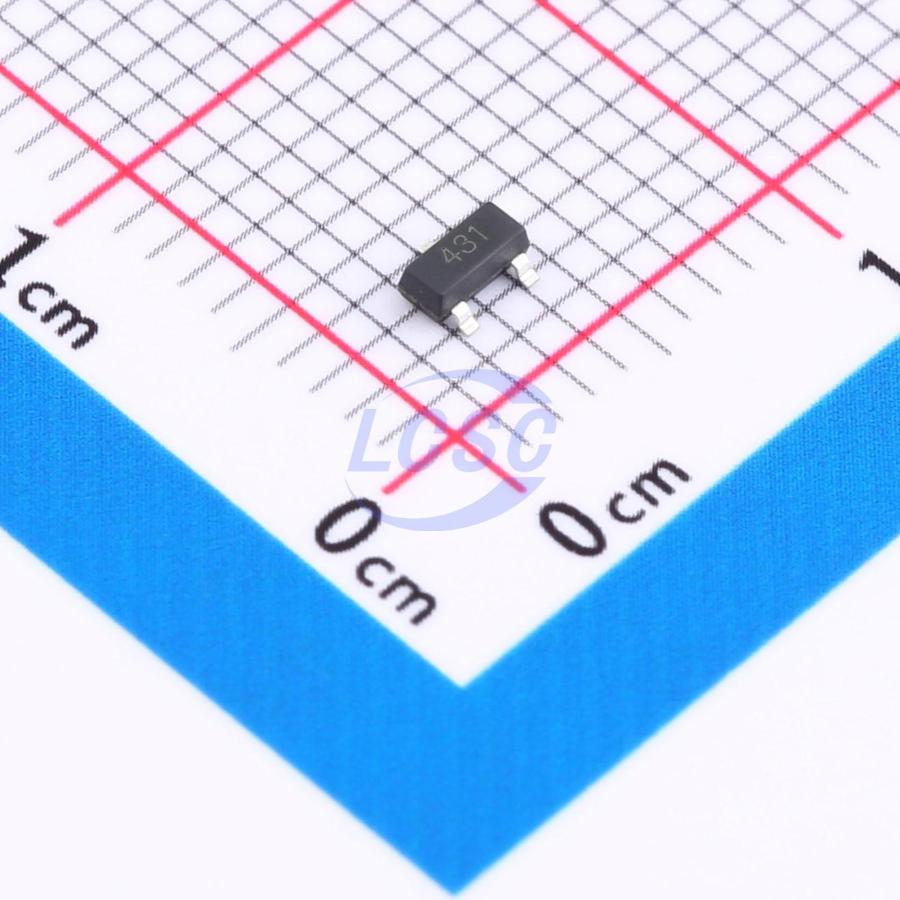

TL431Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
From
₹8.07
4,89,020 in stock
HTCDatasheet (PDF)
TL431ASF
2.495V~40V ±1% 2.495V~40V 150mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Programmable Precision Shunt Regulator
- Manufacturer
- HTC
- Manufacturer part #
- TL431ASF
- Store part #
- C262799
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,830 in stock
#C262799
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.57 | ₹87.85 |
| 50+ | ₹14.09 | ₹704.50 |
| 150+ | ₹12.34 | ₹1,851.00 |
| 500+ | ₹11.03 | ₹5,515.00 |
| 3,000+ | ₹9.63 | ₹28,890.00 |
| 6,000+ | ₹9.10 | ₹54,600.00 |
5 × ₹17.57
₹87.85
excl. GST
₹103.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431ASF
₹87.85 for 5 + GST
Specifications
- Output Voltage
- 2.495V~40V
- Tolerance
- ±1%
- Voltage - Supply
- 2.495V~40V
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 150mA
- Operating Temperature
- -40℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TL431 is a three-terminal adjustable shunt regulator with specified thermal stability over applicable temperature VREF (Approx. 2.5V) and 40V with two external resistors. This device has a typical dynamic output impedance of 0.2Ω. Active output circuitry provides a very sharp turn-on characteristic, making this device excellent replacement for zener diodes in many applications. The TL431 is characterized for operation from -40°C to +125°C.
Applications
- Shunt Regulator
- Precision High-Current Series Regulator
- High-Current Shunt Regulator
- Crowbar Circuit
- PWM Converter With Reference
- Voltage Monitor
- Precision Current Limiter
Key features
- Programmable Output Voltage to 40V
- Guaranteed 0.5% Reference Voltage Tolerance
- Low (0.2Ω Typ.) Dynamic Output Impedance
- Cathode Current Range(Continuous) - 100~150 mA
- Equivalent Full Range Temperature Coefficient of 50PPM/℃ Temperature Compensated For Operation Over Full Rate Operating Temperature Range
- Low Output Noise Voltage
- Fast Turn-on Response
- TO-92, SOT-89 or SOT-23 3L Package
