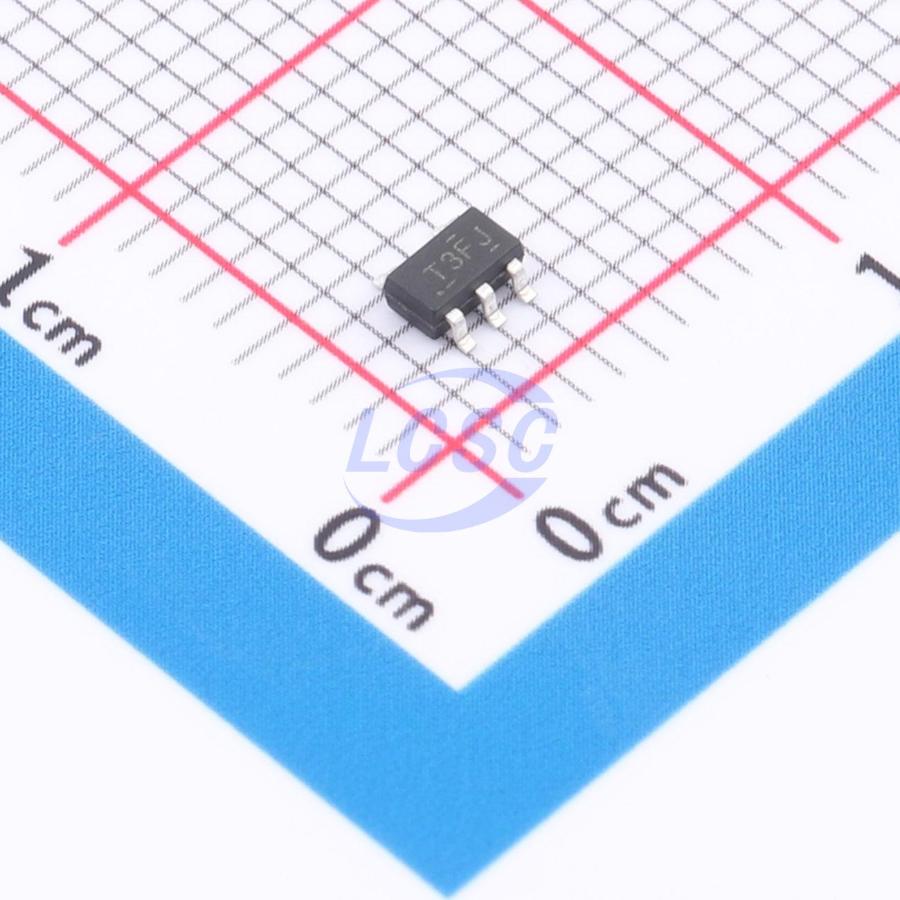

TL431BIDBVR-TP
Shunt Voltage Reference IC Adjustable 2.495V~36V ±0.5% 100mA SOT-23-5
SOT-23-5RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TL431BIDBVR-TP
- Store part #
- C48995559
- Package / case
- SOT-23-5
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C48995559
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.70 | ₹88.50 |
| 50+ | ₹13.92 | ₹696.00 |
| 150+ | ₹12.03 | ₹1,804.50 |
| 500+ | ₹10.61 | ₹5,305.00 |
| 3,000+ | ₹9.47 | ₹28,410.00 |
| 6,000+ | ₹8.90 | ₹53,400.00 |
5 × ₹17.70
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431BIDBVR-TP
₹88.50 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 350uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
This is a three-terminal adjustable shunt regulator that allows the output voltage to be set to any value between the reference voltage (approximately 2.495V) and 36V using two external resistors. The device features an output impedance of 0.15Ω (typical). Its active output circuit delivers a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications. Typical applications include on-board voltage regulation, adjustable power supplies, and power switch control.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Secondary-side voltage regulation for flyback switching power supplies
Key features
- Adjustable output voltage range: 2.495V~36V
- Low dynamic output impedance: 0.15Ω (typical)
- Low temperature drift: 5mV (typical)
- Low output noise
- High capacitive load stability
- Current capacity range: 1~100 mA
- Accuracy: 0.5%
- Package: SOT23-5
