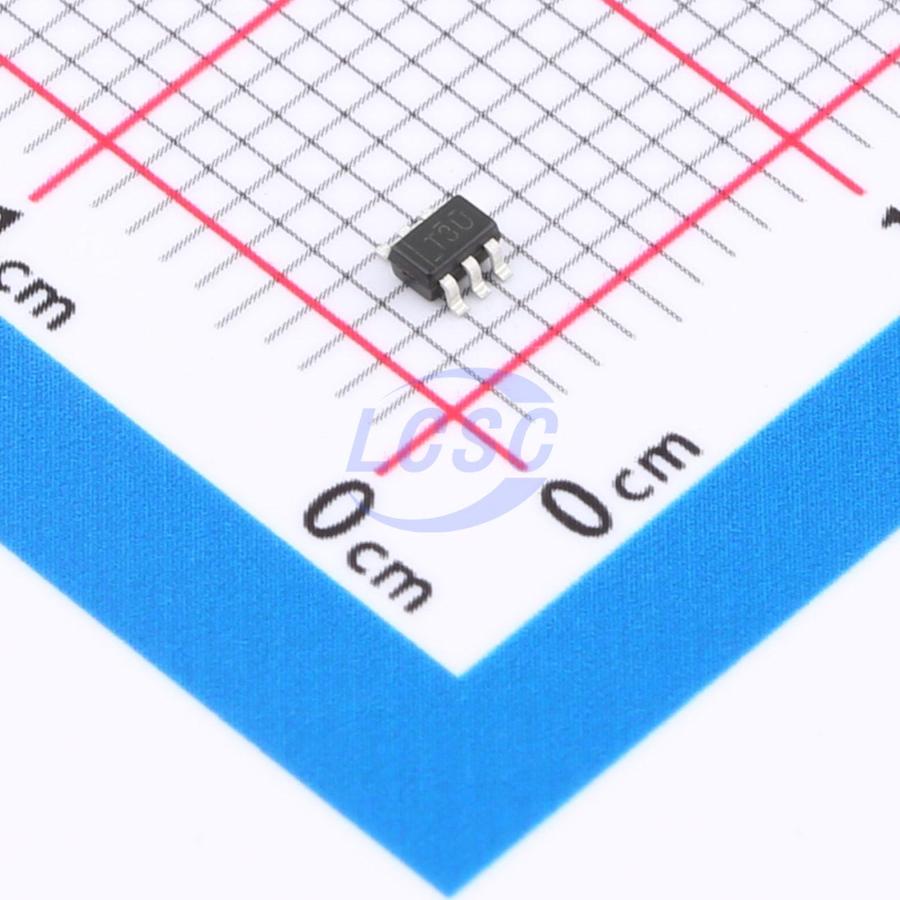

TL431BIDCKR-TP
Shunt Voltage Reference IC Adjustable 2.495V~36V ±0.5% 100mA SOT-363
SOT-363RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TL431BIDCKR-TP
- Store part #
- C48886802
- Package / case
- SOT-363
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,865 in stock
#C48886802
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.20 | ₹91.00 |
| 50+ | ₹14.33 | ₹716.50 |
| 150+ | ₹12.40 | ₹1,860.00 |
| 500+ | ₹10.94 | ₹5,470.00 |
| 3,000+ | ₹9.78 | ₹29,340.00 |
| 6,000+ | ₹9.19 | ₹55,140.00 |
5 × ₹18.20
₹91.00
excl. GST
₹107.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431BIDCKR-TP
₹91.00 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
This device is a three-terminal adjustable shunt voltage regulator that can set the output voltage to any value between V_ref (approximately 2.495V) and 36V using two external resistors. These devices feature an output impedance of 0.15Ω (typical). The active output circuit provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in numerous applications. Typical applications include on-board voltage regulation, adjustable power supplies, and power-on/power-off protection.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Switching power supply
Key features
- Adjustable output voltage range: 2.495V~36V
- Low dynamic output impedance: 0.15Ω (typical)
- Low temperature drift: 5mV (typical)
- Low output noise
- High stability with capacitive loads
- Current capacity range: 1~100 mA
- Accuracy: 0.5%
- Package: SOT363
