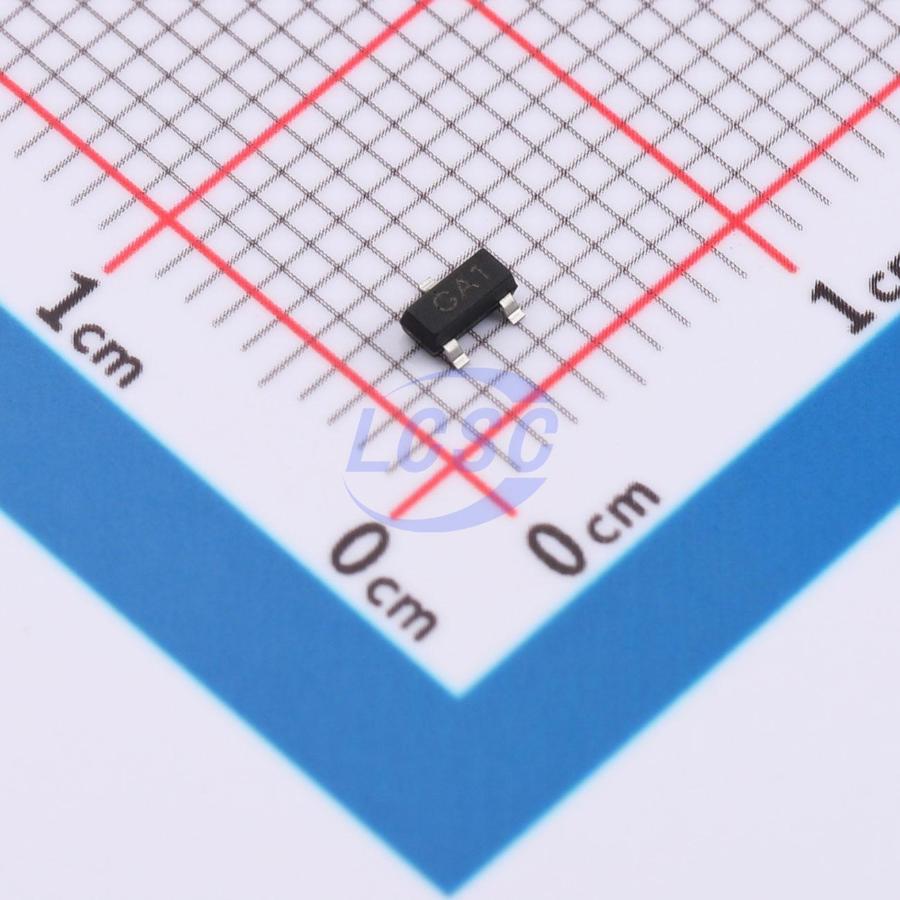

TL431BMFDT-MS
2.5V~36V ±0.5% 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TL431BMFDT-MS
- Store part #
- C52988878
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C52988878
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.78 | ₹97.80 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.79 | ₹2,037.00 |
| 3,000+ | ₹6.05 | ₹18,150.00 |
| 6,000+ | ₹5.45 | ₹32,700.00 |
| 9,000+ | ₹5.15 | ₹46,350.00 |
10 × ₹9.78
₹97.80
excl. GST
₹115.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431BMFDT-MS
₹97.80 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
TL431BMFDT - MS is a three-terminal adjustable shunt voltage regulator with guaranteed thermal stability over the entire operating range. It features sharp turn-on characteristics, low temperature coefficient, and low output impedance, making it an ideal replacement for Zener diodes in applications such as switching power supplies, chargers, and other adjustable voltage regulators. The output voltage of the TL431BMFDT - MS can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V). The TL431BMFDT - MS precision reference offers two voltage tolerance options: 0.5%.
Applications
- Charger
- Voltage Adapter
- Switching Power Supply
- Graphics Card
- Precision Voltage Reference
Key features
- Programmable precision output voltage range: 2.5V to 36V
- High stability under capacitive load
- Low temperature deviation: typical 4.5mV
- Low equivalent full-range temperature coefficient: typical 20PPM/°C
- Sink current capability: 1mA to 100mA
- Low output noise
- Wide operating range: -40°C to +125°C
- Lead-free package
- Lead-free package with "green" molding compound
