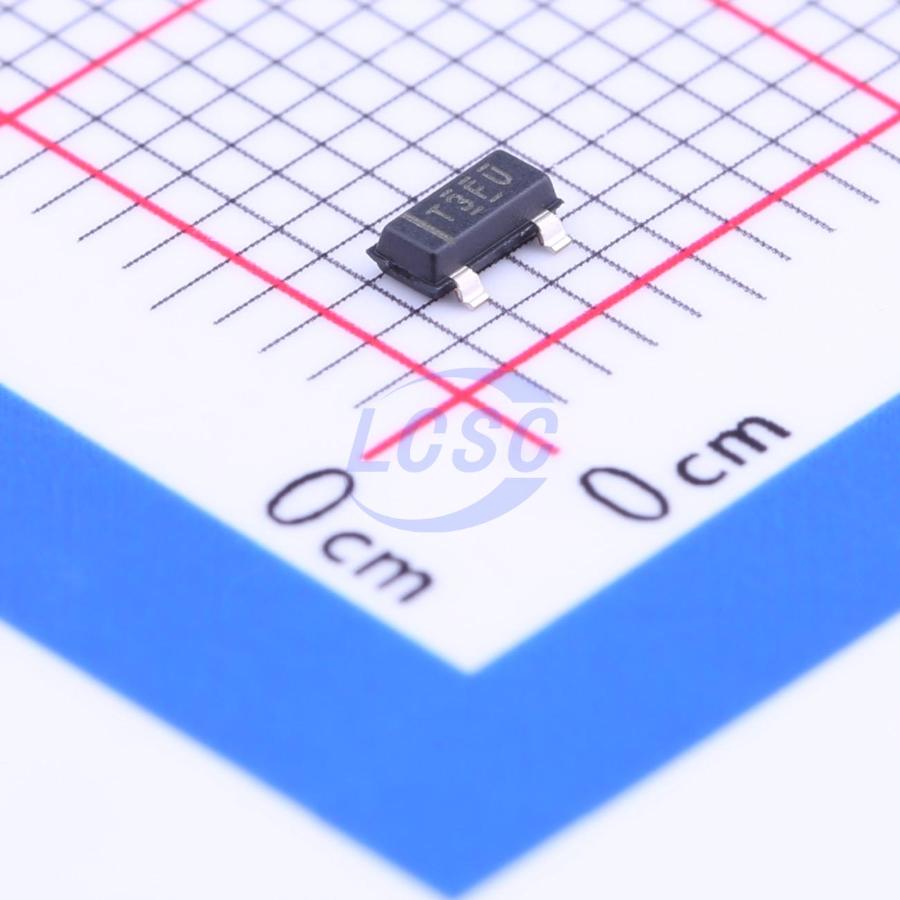

TL431Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
From
₹8.07
4,90,080 in stock
TIDatasheet (PDF)
TL431BQDBZRQ1
2.495V~36V ±0.5% 2.5V~36V 100mA Adjustable SOT-23-3 Voltage Reference RoHS
SOT-23-3ROHS3 CompliantActive
Adjustable Precision Shunt Regulator
- Manufacturer
- TI
- Manufacturer part #
- TL431BQDBZRQ1
- Store part #
- C97747
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,865 in stock
#C97747
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.90 | ₹114.90 |
| 10+ | ₹91.45 | ₹914.50 |
| 30+ | ₹79.50 | ₹2,385.00 |
| 100+ | ₹67.99 | ₹6,799.00 |
| 500+ | ₹60.82 | ₹30,410.00 |
| 1,000+ | ₹57.35 | ₹57,350.00 |
1 × ₹114.90
₹114.90
excl. GST
₹135.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431BQDBZRQ1
₹114.90 for 1 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The TL431-Q1 is a three-pin adjustable shunt regulator with specified thermal stability over applicable automotive temperature ranges. The output voltage can be set to any value from VREF (approximately 2.5 V) to 36 V, with two external resistors. This device has a typical output impedance of 0.2 Ω. Active output circuitry provides a sharp turnon characteristic, making this device an excellent replacement for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies.
Applications
- Adjustable Voltage and Current Referencing
- Secondary Side Regulation in Flyback SMPSs
- Zener Replacement
- Voltage Monitoring
- Comparator With Integrated Reference
Key features
- Qualified for Automotive Applications
- AEC-Q100 Test Guidance With the Following: Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
- Reference Voltage Tolerance at 25°C: – 1% (A Grade) – 0.5% (B Grade)
- Typical Temperature Drift: – 14 mV (Q Temp)
- Low Output Noise
- 0.2–Ω Typical Output Impedance
- Sink-Current Capability: 1 mA to 100 mA
- Adjustable Output Voltage: VREF to 36 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL431BSA-7#C97730DIODES · SOT-23 | DIODES | SOT-23 | 4,420 | ₹23.84 · 4,420 in stock | View |
 | LR TL431A-UK#C54333728LR · SOT-23 | LR | SOT-23 | 1,280 | ₹6.48 · 1,280 in stock | View |
 | TL431BQDBZR,215#C78611Nexperia · SOT-23 | Nexperia | SOT-23 | 8,010 | ₹16.23 · 8,010 in stock | View |
 | TL431BFDT,215#C97755Nexperia · SOT-23 | Nexperia | SOT-23 | 1,005 | ₹29.48 · 1,005 in stock | View |
 | TL431BMFDT,215#C97757Nexperia · SOT-23 | Nexperia | SOT-23 | 2,604 | ₹57.43 · 2,604 in stock | View |
