MSKSEMIDatasheet (PDF)

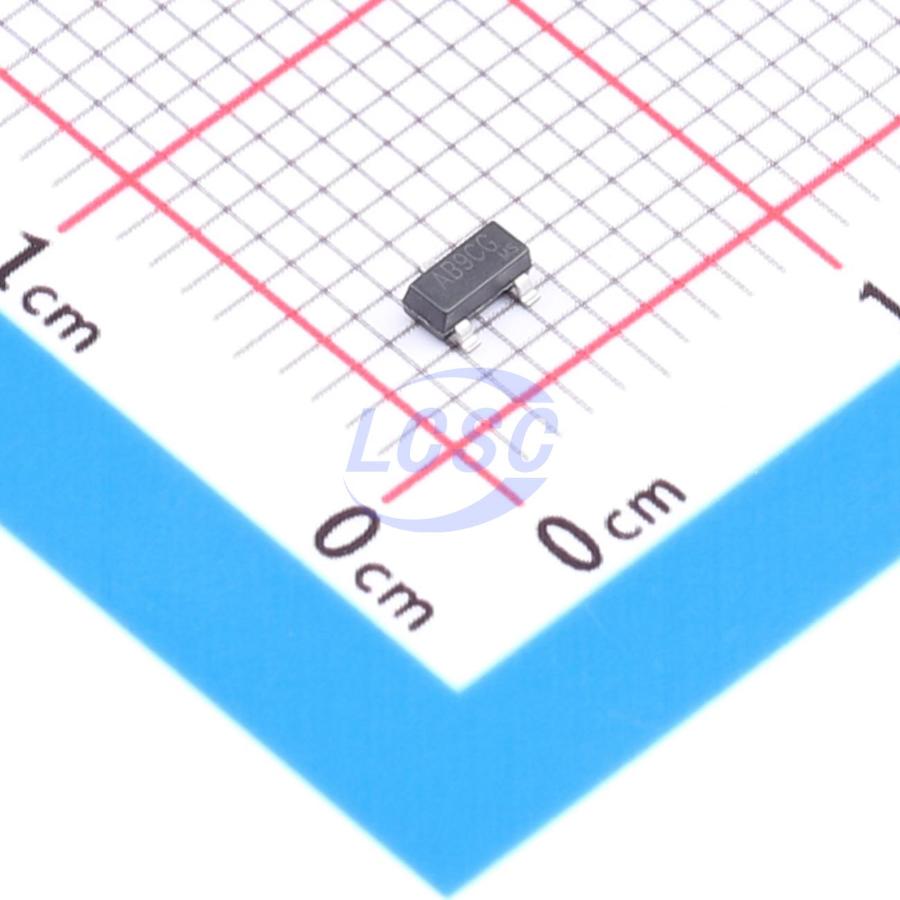

TL431BSA-7-MS
2.5V~40V 2.5V~36V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TL431BSA-7-MS
- Store part #
- C52988881
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,750 in stock
#C52988881
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.58 | ₹55.80 |
| 100+ | ₹4.43 | ₹443.00 |
| 300+ | ₹3.86 | ₹1,158.00 |
| 3,000+ | ₹3.43 | ₹10,290.00 |
| 6,000+ | ₹3.08 | ₹18,480.00 |
| 9,000+ | ₹2.91 | ₹26,190.00 |
10 × ₹5.58
₹55.80
excl. GST
₹65.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431BSA-7-MS
₹55.80 for 10 + GST
Specifications
- Output Voltage
- 2.5V~40V
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 250uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
TL431BSxx - xx - MS is a series of three-terminal adjustable voltage regulators with guaranteed thermal stability over the applicable temperature range. The output voltage can be set to any value between Vref (approximately 2.5V) and 40V using two external resistors. These devices have a typical dynamic output impedance of 0.2Ω. The active output circuit provides a very sharp turn-on characteristic, making these devices an excellent replacement for Zener diodes in many applications.
Key features
- Programmable output voltage up to 36V
- Low dynamic output impedance 0.27Ω (typical)
- Sink current capability from 0.1 mA to 100 mA
- Equivalent full-range temperature coefficient 50 ppm/°C
- Temperature compensated over full rated operating temperature range
- Low output noise voltage
- Fast turn-on response
- TO-92, SOP-8, SOT-89-3, or SOT-23 package
