MSKSEMIDatasheet (PDF)

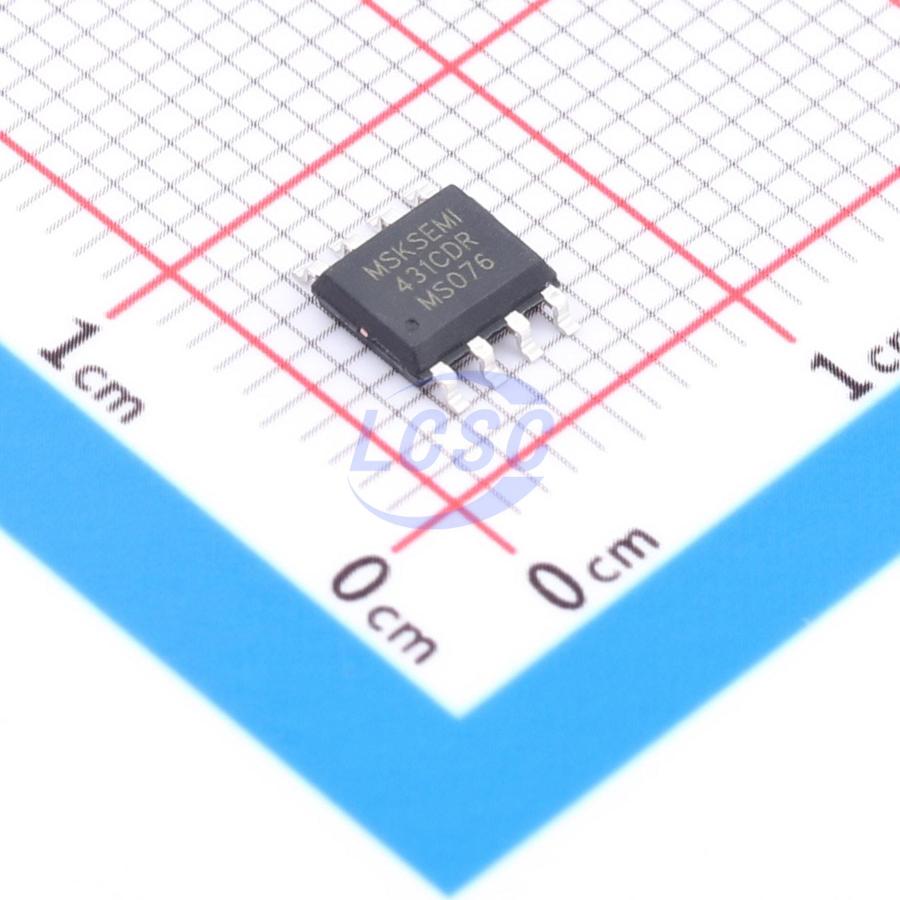

TL431CDR-MS
2.5V~40V 2.5V~36V 100mA Adjustable SOP-8 Voltage Reference
SOP-8RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TL431CDR-MS
- Store part #
- C52988988
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C52988988
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.67 | ₹63.35 |
| 50+ | ₹10.07 | ₹503.50 |
| 150+ | ₹8.77 | ₹1,315.50 |
| 500+ | ₹7.79 | ₹3,895.00 |
| 2,500+ | ₹7.01 | ₹17,525.00 |
| 5,000+ | ₹6.62 | ₹33,100.00 |
5 × ₹12.67
₹63.35
excl. GST
₹74.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL431CDR-MS
₹63.35 for 5 + GST
Specifications
- Output Voltage
- 2.5V~40V
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 250uA
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.188 g
Overview
TL431CDxxx - MS is a family of three-terminal adjustable voltage regulators with guaranteed thermal stability over the applicable temperature range. The output voltage can be set to any value between Vref (approximately 2.5 V) and 40 V using two external resistors. These devices feature a typical dynamic output impedance of 0.2Ω. The active output circuit exhibits a very sharp turn-on characteristic, making these devices ideal replacements for Zener diodes in many applications.
Key features
- Programmable output voltage up to 36V
- Low dynamic output impedance 0.27Ω (typical)
- Sink current capability from 0.1 mA to 100 mA
- Equivalent full-range temperature coefficient 50 ppm/°C
- Temperature compensated over full rated operating temperature range
- Low output noise voltage
- Fast turn-on response
- TO-92, SOP-8, SOT-89, or SOT-23 package
