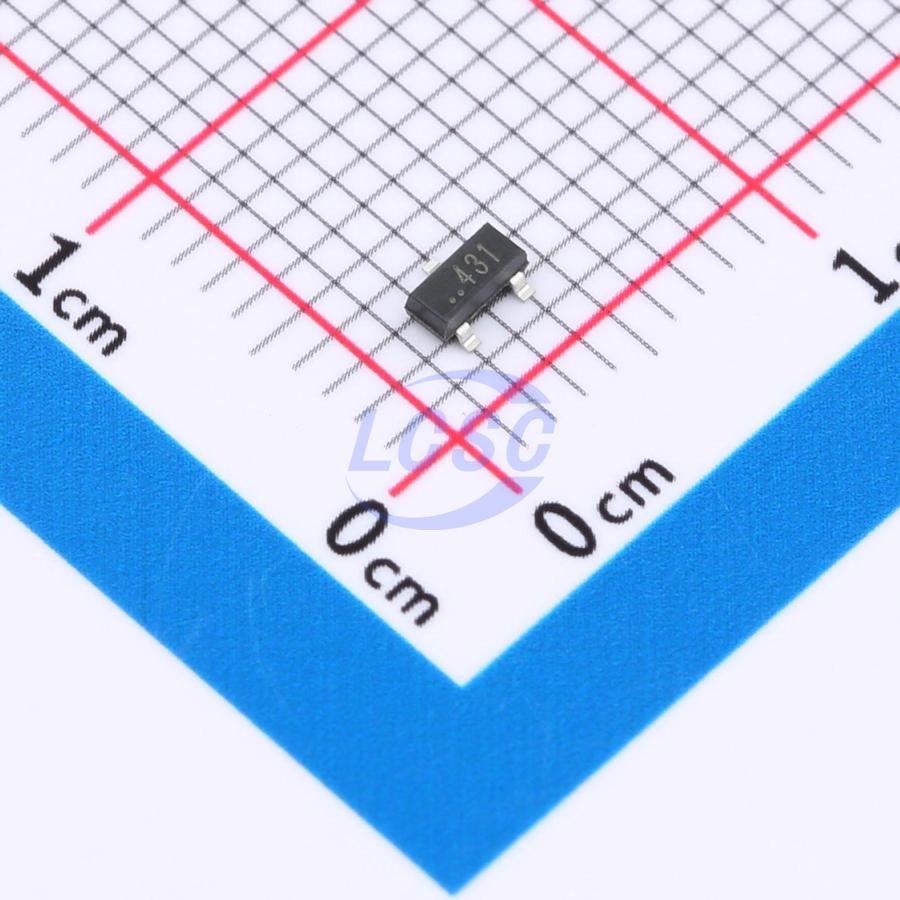

TL431Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
From
₹8.07
4,89,020 in stock
ALJDatasheet (PDF)
TL431D
2.495V ±0.4% 2.495V~36V 100mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
SOT-23 Encapsulate Adjustable Reference Source
- Manufacturer
- ALJ
- Manufacturer part #
- TL431D
- Store part #
- C22392283
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69,520 in stock
#C22392283
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.48 | ₹69.60 |
| 200+ | ₹2.70 | ₹540.00 |
| 600+ | ₹2.26 | ₹1,356.00 |
| 3,000+ | ₹2.05 | ₹6,150.00 |
| 9,000+ | ₹1.83 | ₹16,470.00 |
| 21,000+ | ₹1.71 | ₹35,910.00 |
20 × ₹3.48
₹69.60
excl. GST
₹82.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431D
₹69.60 for 20 + GST
Specifications
- Output Voltage
- 2.495V
- Tolerance
- ±0.4%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 40uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
The TL431D is a low voltage three terminal adjustable shunt regulator. The output voltage can be set to any value between 2.495V (VREF) to 36V with two external resistors (please refer application circuit). The high precise Reference voltage tolerance is available in two grades: ±0.5% and ±1.0%. This device has a typical minimum cathode current of 40uA. Active output circuitry provides a very sharp turn on characteristic, making this device excellent replacement for Zener diodes in many applications.
Applications
- Switching Mode Power Supply Voltage Reference Application
Key features
- Precision reference voltage: TL431D: 2.495V ±0.4%
- Adjustable output voltage is VREF to 36V
- Sink current capability from 80μA to 100mA
- Low Minimum Cathode Current for Regulation: 40μA (Typ.), 80μA (Max.)
