Guangdong Hottech

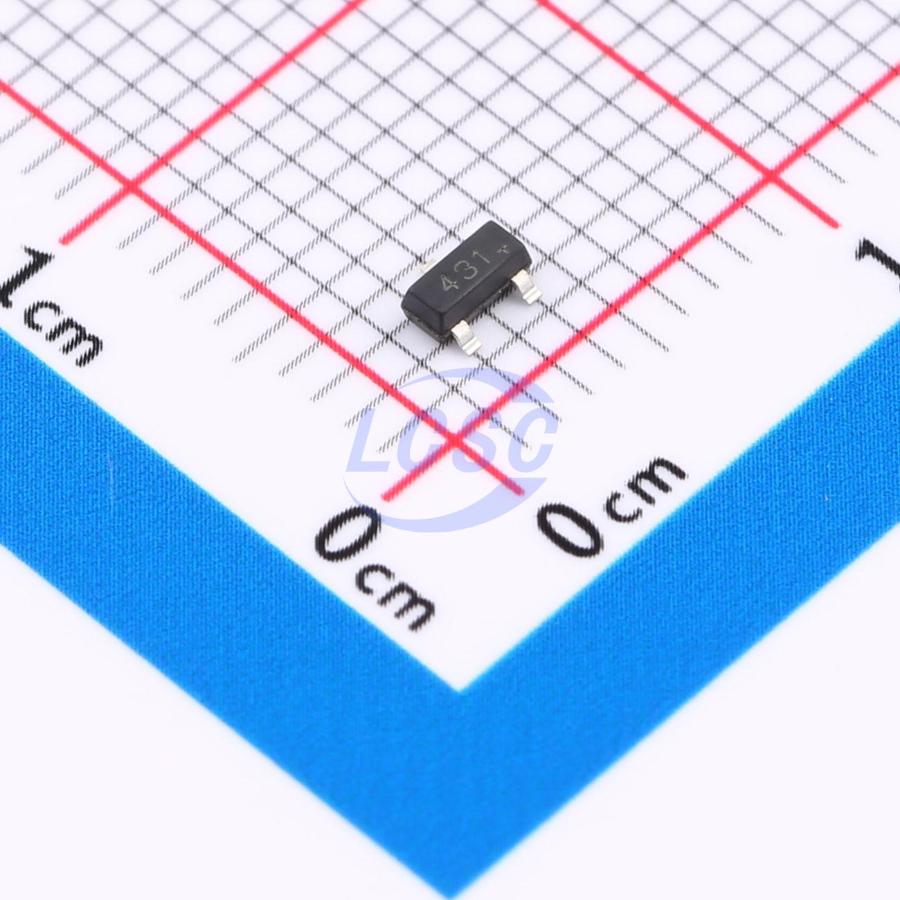

TL431Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
From
₹8.07
4,90,080 in stock
Guangdong HottechDatasheet (PDF)
TL431D
2.5V~36V ±1% 150mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- Guangdong Hottech
- Manufacturer part #
- TL431D
- Store part #
- C49238166
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,060 in stock
#C49238166
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.37 | ₹53.70 |
| 100+ | ₹4.27 | ₹427.00 |
| 300+ | ₹3.72 | ₹1,116.00 |
| 3,000+ | ₹3.31 | ₹9,930.00 |
| 6,000+ | ₹2.98 | ₹17,880.00 |
| 9,000+ | ₹2.80 | ₹25,200.00 |
10 × ₹5.37
₹53.70
excl. GST
₹63.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431D
₹53.70 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Quiescent Current
- 1.5uA
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 450uA
- Reference Type
- Parallel
- Output Current
- 150mA
- Operating Temperature
- -20℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
Applications
- Shunt regulator
- High-current shunt regulator
- Precision current limiter
Key features
- Effective temperature compensation across the full operating temperature range
- Typical equivalent temperature coefficient of 50 ppm/°C over the full temperature range
- Output voltage adjustable up to 36V
- Low dynamic output impedance, typical 0.20 Ω
- Current capability from 1 to 100mA
- Low output noise voltage
- Fast turn-on response
- Surface mount device
