MSKSEMIDatasheet (PDF)

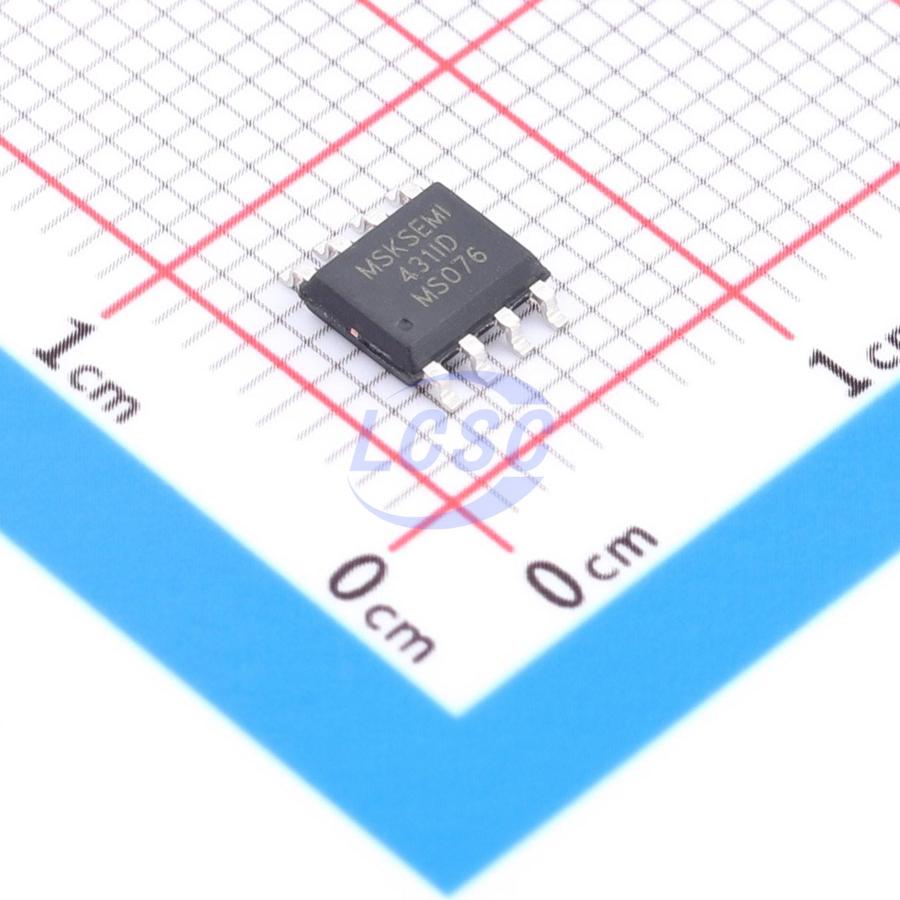

TL431IDR-MS
2.483V~36V 100mA Adjustable SOP-8 Voltage Reference
SOP-8RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TL431IDR-MS
- Store part #
- C52988987
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C52988987
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.36 | ₹73.60 |
| 100+ | ₹5.85 | ₹585.00 |
| 300+ | ₹5.09 | ₹1,527.00 |
| 2,500+ | ₹4.52 | ₹11,300.00 |
| 5,000+ | ₹4.06 | ₹20,300.00 |
| 10,000+ | ₹3.84 | ₹38,400.00 |
10 × ₹7.36
₹73.60
excl. GST
₹86.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL431IDR-MS
₹73.60 for 10 + GST
Specifications
- Output Voltage
- 2.483V~36V
- Minimum Cathode Current for Regulation
- 250uA
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.19 g
Overview
TL431IDxxx - MS is a series of three-terminal adjustable voltage regulators with guaranteed thermal stability over the applicable temperature range. Using two external resistors, the output voltage can be set to any value between Vref (approximately 2.5 V) and 40 V. These devices have a typical dynamic output impedance of 0.2Ω. The active output circuit provides a very sharp turn-on characteristic, making these devices an excellent replacement for Zener diodes in many applications.
Key features
- Programmable output voltage up to 36V
- Low dynamic output impedance 0.27Ω (typical)
- Sink current capability from 0.1 mA to 100 mA
- Equivalent full-range temperature coefficient 50 ppm/℃
- Temperature compensated, operates over full rated temperature range
- Low output noise voltage
- Fast turn-on response
- TO-92, SOP-8, SOT-89, or SOT-23 package
