STDatasheet (PDF)

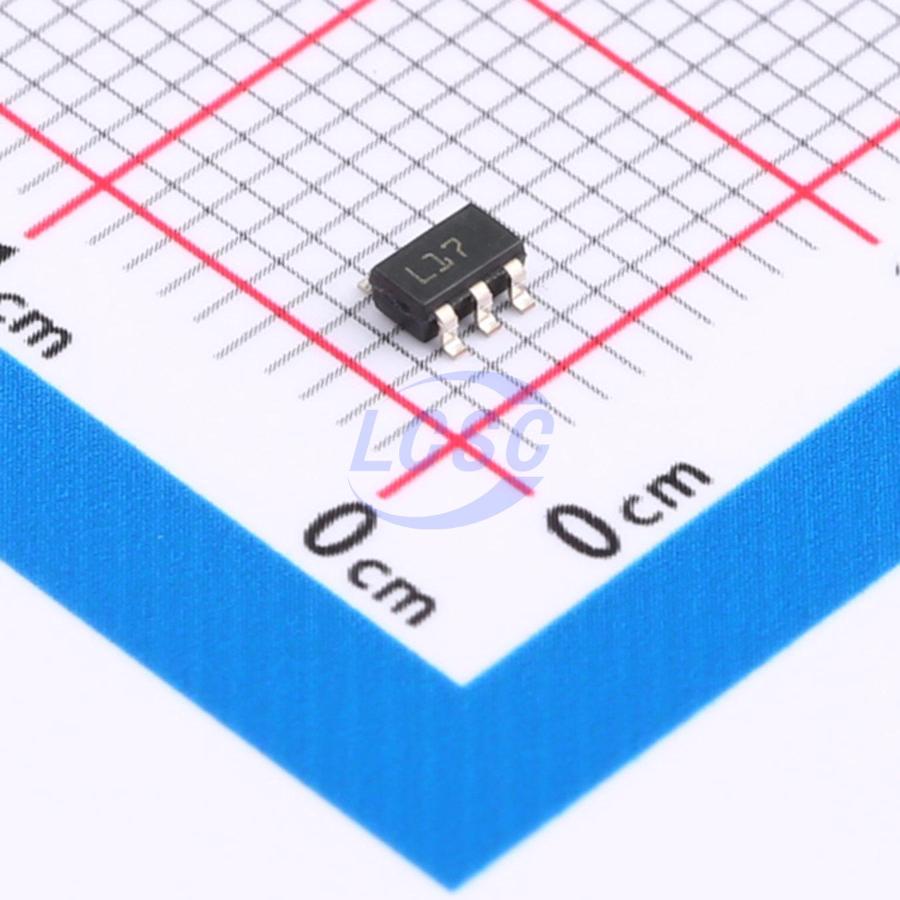

TL431IL5T
2.495V~36V ±2% 2.5V~36V 100mA Adjustable SOT-23-5L Voltage Reference RoHS
SOT-23-5LROHS3 CompliantActive
Automotive adjustable voltage reference
- Manufacturer
- ST
- Manufacturer part #
- TL431IL5T
- Store part #
- C5267726
- Package / case
- SOT-23-5L
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,200 in stock
#C5267726
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.71 | ₹148.55 |
| 50+ | ₹23.15 | ₹1,157.50 |
| 150+ | ₹20.35 | ₹3,052.50 |
| 500+ | ₹16.83 | ₹8,415.00 |
| 3,000+ | ₹15.27 | ₹45,810.00 |
| 6,000+ | ₹14.33 | ₹85,980.00 |
5 × ₹29.71
₹148.55
excl. GST
₹175.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431IL5T
₹148.55 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±2%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+105℃@(Ta)
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.064 g
Overview
The TL431 and TL432 are adjustable shunt voltage references with guaranteed temperature stability over the entire operating temperature range from -40 °C up to +125 °C. The device temperature range is extended for the automotive version from -40 °C up to +125 °C. The output voltage can be set to any value between 2.5 and 36 V with two external resistors.
Applications
- Automotive
Key features
- Adjustable output voltage
- 100 mA current capability
- 0.22 Ω typical dynamic impedance
- 0.5% voltage precision (only for some versions)
- Guaranteed temperature stability from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL431QDBVR#C2861791TI · SOT-23-5 | TI | SOT-23-5 | 130 | ₹7.77 · 130 in stock | View |
 | TL431IDBVR#C350567TI · SOT-23-5 | TI | SOT-23-5 | 10,975 | ₹12.34 · 10,975 in stock | View |
| TP431N249S5-1#C48995584TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 500 | ₹15.21 · 500 in stock | View | |
 | TL431ACM5/TR#C41378145HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,935 | ₹9.60 · 2,935 in stock | View |
 | TL431ACL5T#C2157665ST · SOT-23-5 | ST | SOT-23-5 | 100 | ₹30.81 · 100 in stock | View |
