UTC

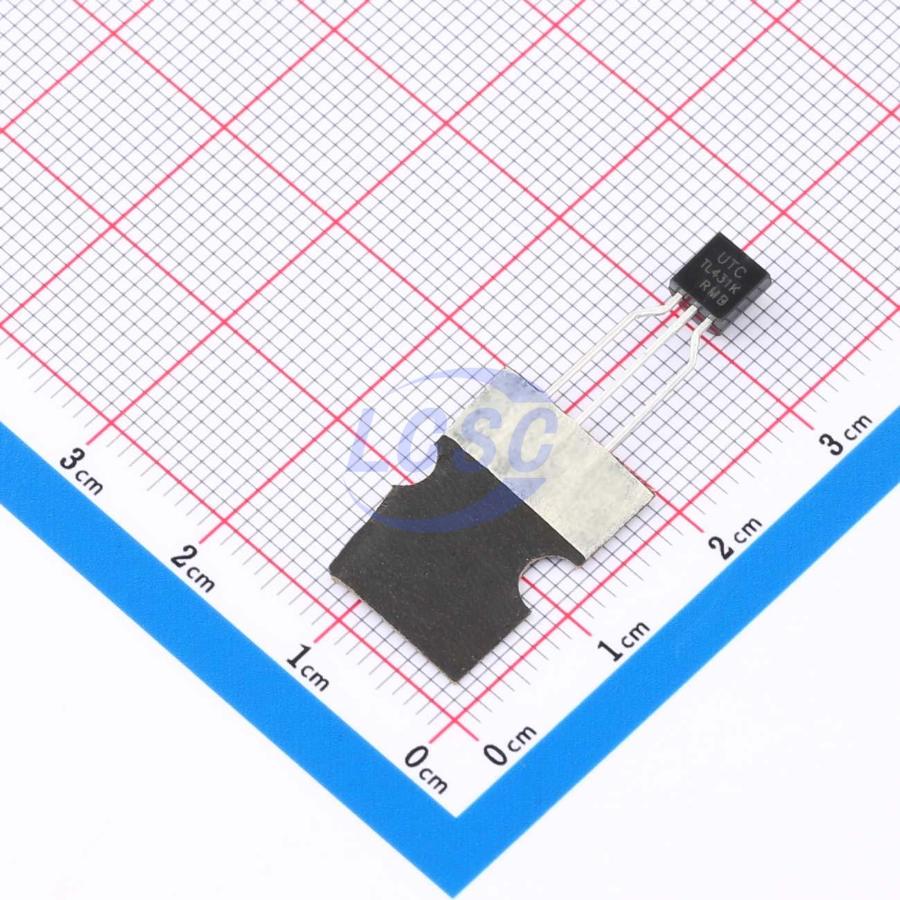

TL431K-T92-B

2.5V~36V 2.5V~36V 100mA Adjustable TO-92 Voltage Reference RoHS

TO-92ROHS CompliantActive

Programmable Precision Reference Linear Integrated Circuit

Manufacturer: UTC
Manufacturer part #: TL431K-T92-B
Store part #: C71131
Package / case: TO-92
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,920 in stock

#C71131

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.01	₹70.10
100+	₹5.69	₹569.00
300+	₹5.03	₹1,509.00
2,000+	₹4.19	₹8,380.00
4,000+	₹3.80	₹15,200.00
10,000+	₹3.60	₹36,000.00

Quantity (min 10, multiples of 10)

10 × ₹7.01

₹70.10

excl. GST

₹82.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per box

TL431K-T92-B

₹70.10 for 10 + GST

Specifications

Output Voltage: 2.5V~36V
Voltage - Supply: 2.5V~36V
Minimum Cathode Current for Regulation: 500uA
Reference Type: Series;Parallel
Output Current: 100mA
Operating Temperature: -40℃~+85℃
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Box
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.328 g

Overview

The UTC TL431 is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between VREF (approximately 2.5V) and 36V with two external resistors. It provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others.

Key features

Programmable output Voltage to 36V.
Low dynamic output impedance 0.2Ω.
Sink current capability of 1.0 to 100mA.
Equivalent full-range temperature coefficient of 50ppm/°C typical for operation over full rated operating temperature range.
