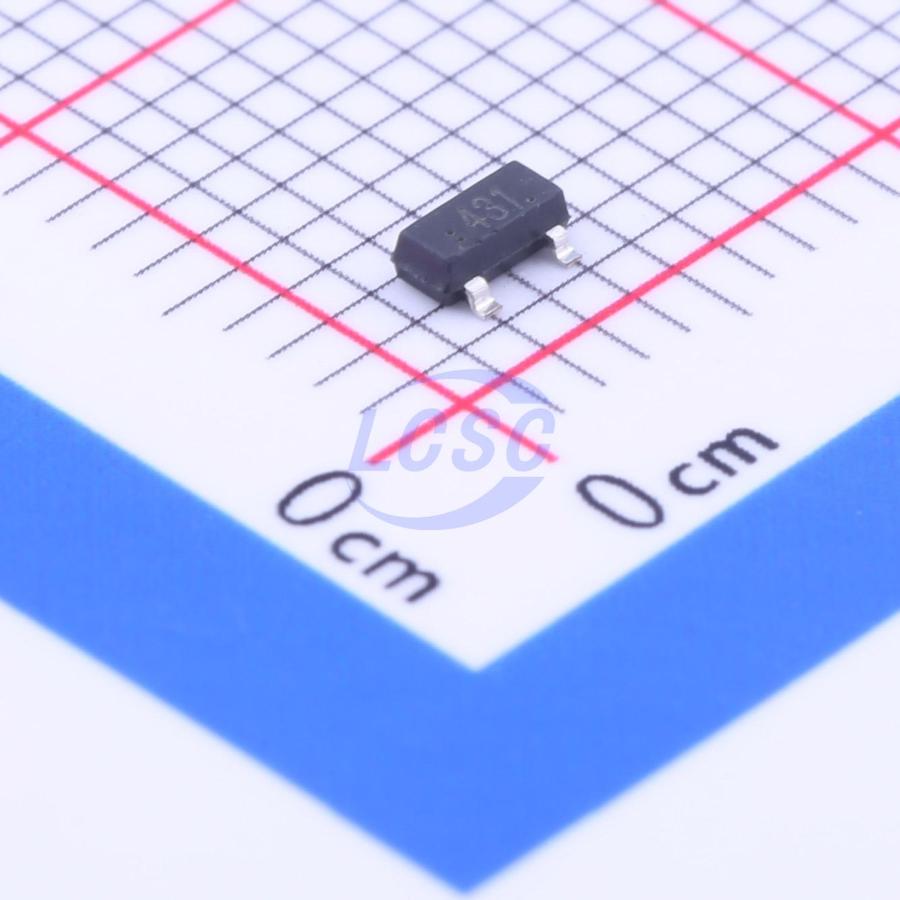

TL431N-0.5%
2.495V~36V ±0.5% 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
- Manufacturer
- HT(Shenzhen Jinyu Semicon)
- Manufacturer part #
- TL431N-0.5%
- Store part #
- C259983
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,600 in stock
#C259983
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.71 | ₹94.20 |
| 200+ | ₹3.68 | ₹736.00 |
| 600+ | ₹3.10 | ₹1,860.00 |
| 3,000+ | ₹2.75 | ₹8,250.00 |
| 9,000+ | ₹2.45 | ₹22,050.00 |
| 21,000+ | ₹2.29 | ₹48,090.00 |
20 × ₹4.71
₹94.20
excl. GST
₹111.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431N-0.5%
₹94.20 for 20 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 150uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -20℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
The TL431N is three-terminal adjustable shunt regulator with specified termal stability. The output voltage may be set to any value between V REF (Approx. 2.5V) and 36V with two external resistors. This device has a typical output inpedance of 0.2Ω. Active output circuitry provides a very sharp turn-on characteristic, making this device excellent replacement for zener diodes in many application.
Key features
- Equivalent Full Range Temperature Coefficient 50PPM/℃
- Temperature Compensated For Operation Over Full Rate Operating Temperature Range
- Adjustable Output Voltage
- Fast Turn-on Response
- Sink Current Capability 1㎃ to 100㎃
- Low (0.2Ω Typ.) Dynamic Output Impedance
- Low Output Noise
