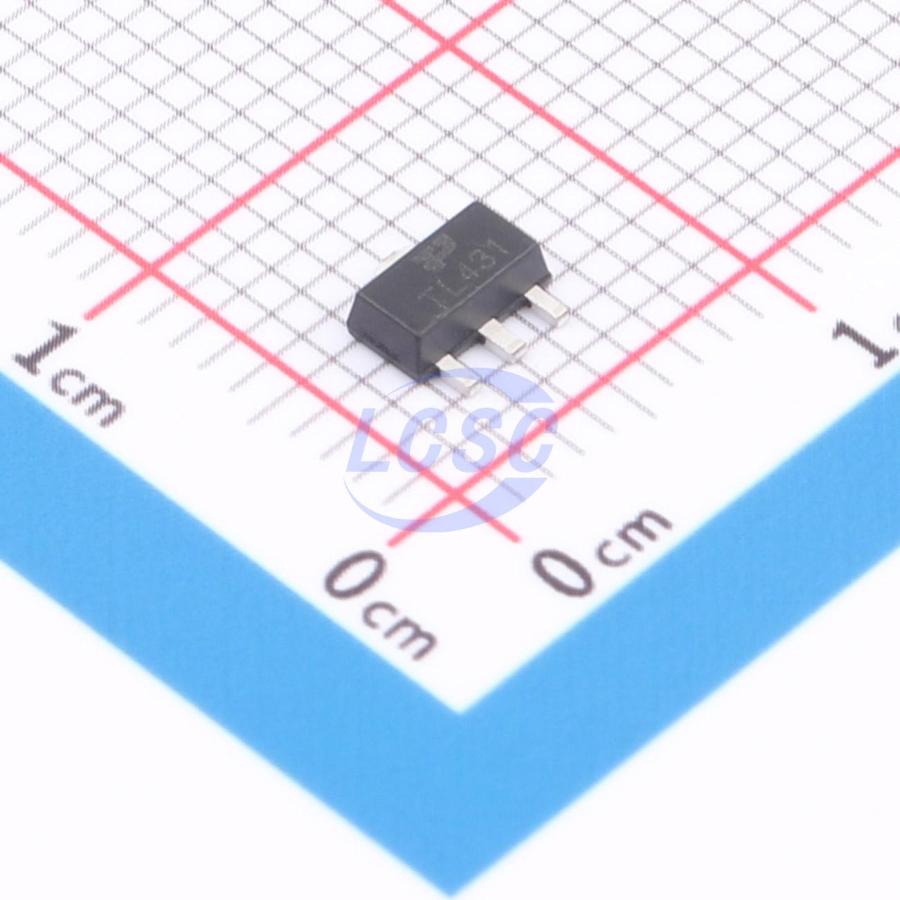

TL431QPK-TP
Shunt Voltage Reference IC Adjustable 2.495V~36V ±1% 100mA SOT-89-3
SOT-89-3RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TL431QPK-TP
- Store part #
- C48995568
- Package / case
- SOT-89-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,275 in stock
#C48995568
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.22 | ₹56.10 |
| 50+ | ₹8.93 | ₹446.50 |
| 150+ | ₹7.78 | ₹1,167.00 |
| 1,000+ | ₹6.92 | ₹6,920.00 |
| 2,000+ | ₹6.23 | ₹12,460.00 |
| 5,000+ | ₹5.89 | ₹29,450.00 |
5 × ₹11.22
₹56.10
excl. GST
₹66.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TL431QPK-TP
₹56.10 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 350uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.133 g
Overview
This device is a three-terminal adjustable shunt regulator that can set the output voltage to any value between the reference voltage (approximately 2.495V) and 36V using two external resistors. Its output impedance is 0.15Ω (typical). The active output circuit provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications. Typical applications include on-board regulation, adjustable power supplies, and power-on/power-off protection.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Secondary-side voltage regulation for flyback switching power supplies
Key features
- Adjustable output voltage range: 2.495V~36V
- Low dynamic output impedance: 0.15Ω (typical)
- Low temperature drift: 5mV (typical)
- Low output noise
- High capacitive load stability
- Current capability range: 1~100mA
- Accuracy: 1%
- Package: SOT89-3
