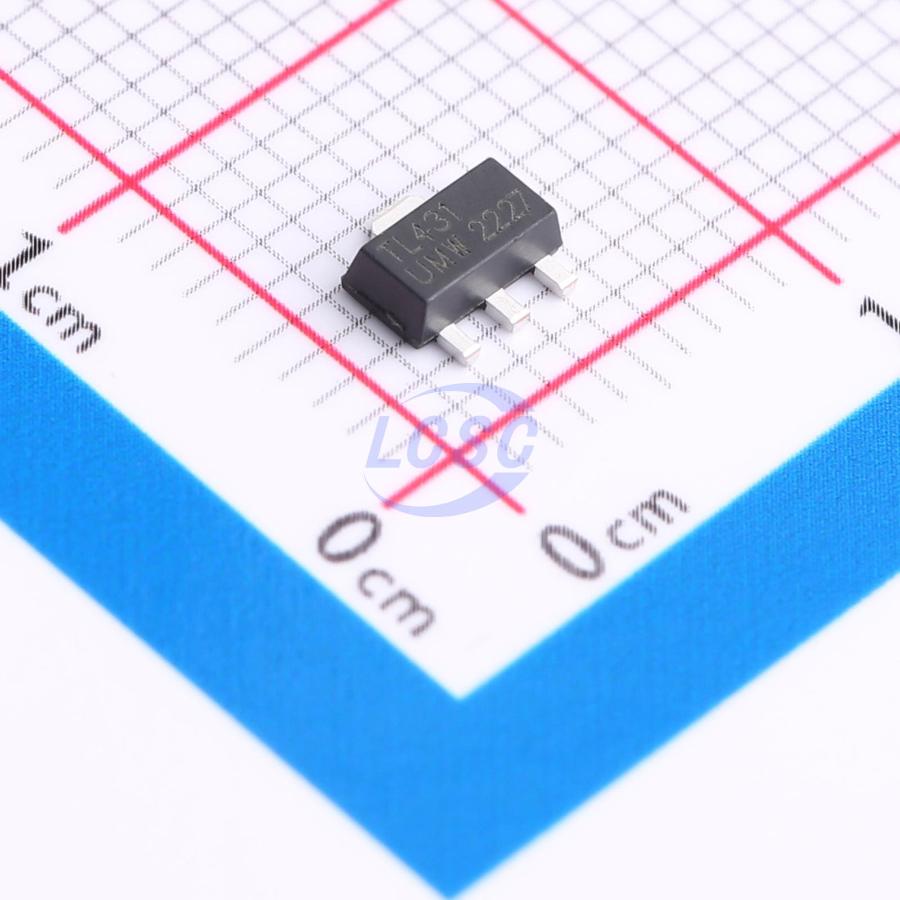

UMW

TL431S

2.495V~36V ±0.5% 2.495V~36V 100mA Adjustable SOT-89-3 Voltage Reference RoHS

SOT-89-3ROHS3 CompliantActive

Adjustable Precision Shunt Regulator

Manufacturer: UMW
Manufacturer part #: TL431S
Store part #: C4944984
Package / case: SOT-89-3
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,540 in stock

#C4944984

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.70	₹57.00
100+	₹4.54	₹454.00
300+	₹3.97	₹1,191.00
1,000+	₹3.18	₹3,180.00
5,000+	₹2.82	₹14,100.00
10,000+	₹2.65	₹26,500.00

Quantity (min 10, multiples of 10)

10 × ₹5.70

₹57.00

excl. GST

₹67.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

TL431S

₹57.00 for 10 + GST

Specifications

Output Voltage: 2.495V~36V
Tolerance: ±0.5%
Voltage - Supply: 2.495V~36V
Minimum Cathode Current for Regulation: 500uA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -40℃~+85℃
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.17 g

Overview

UMW TL431 is a series of three-terminal adjustable voltage regulators with guaranteed thermal stability over the applicable temperature range. By using two external resistors, the output voltage can be set to any value between the reference voltage (Vref) and 36V. These devices feature a typical dynamic output impedance of 0.27Ω, and the active output circuit exhibits a very sharp turn-on characteristic, making them ideal replacements for Zener diodes in many applications.
