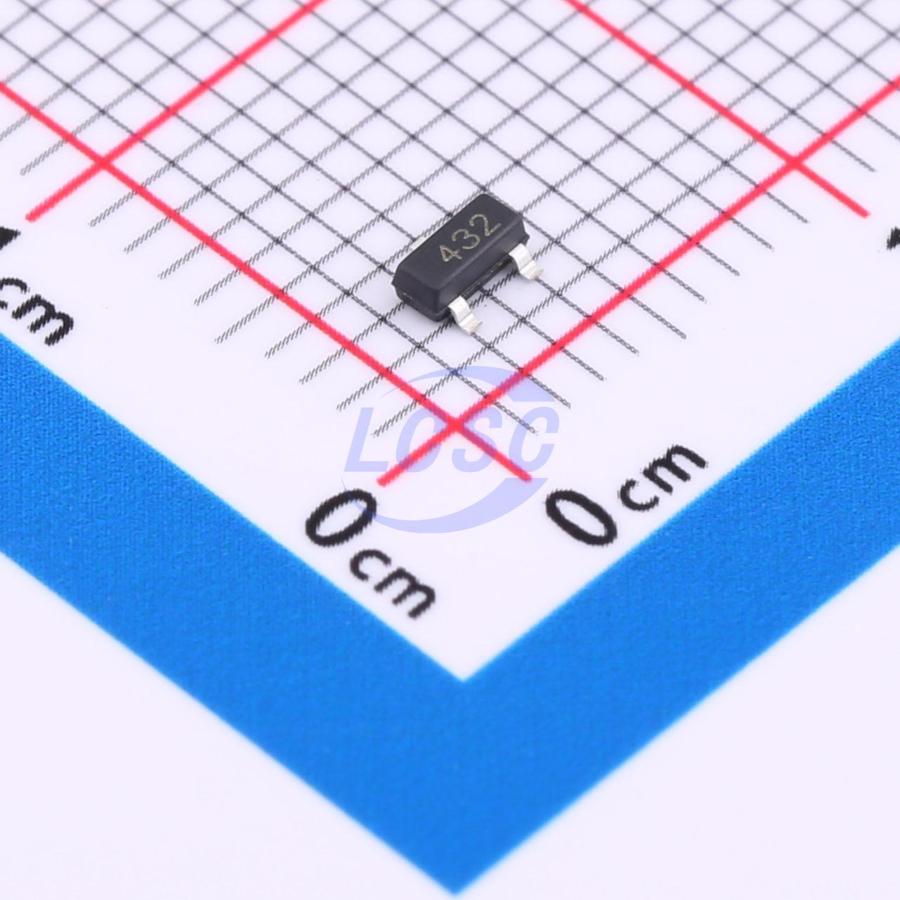

TL432
Shunt Voltage Reference IC Adjustable 1.25V~18V 100mA SOT-23
SOT-23RoHSActive
Three-terminal adjustable shunt voltage regulator
- Manufacturer
- GR
- Manufacturer part #
- TL432
- Store part #
- C18164472
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,680 in stock
#C18164472
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.20 | ₹104.00 |
| 200+ | ₹4.17 | ₹834.00 |
| 600+ | ₹3.65 | ₹2,190.00 |
| 3,000+ | ₹3.27 | ₹9,810.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
| 21,000+ | ₹2.79 | ₹58,590.00 |
20 × ₹5.20
₹104.00
excl. GST
₹122.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL432
₹104.00 for 20 + GST
Specifications
- Output Voltage
- 1.25V~18V
- Tolerance
- ±2%
- Voltage - Supply
- 1.3V~19V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- 0℃~+80℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.02 g
Overview
TL432 is a three-terminal adjustable shunt regulator. By configuring two external resistors, the output voltage can be set anywhere between Vref (approximately 1.25V) and 18V. It features low dynamic output impedance (typical 0.2Ω). Since the output voltage can be set via a reference voltage, it serves as an excellent replacement for Zener diodes in many applications and is widely used across various electronic circuits.
Applications
- Switching power supplies
- Measuring instruments
- Other consumer electronics
Key features
- Output voltage up to 18V
- Low dynamic output impedance, typical 0.2Ω
- Low output noise voltage
- Package: SOT23, SOT25, SOT89-3, TO92
