TECH PUBLICDatasheet (PDF)

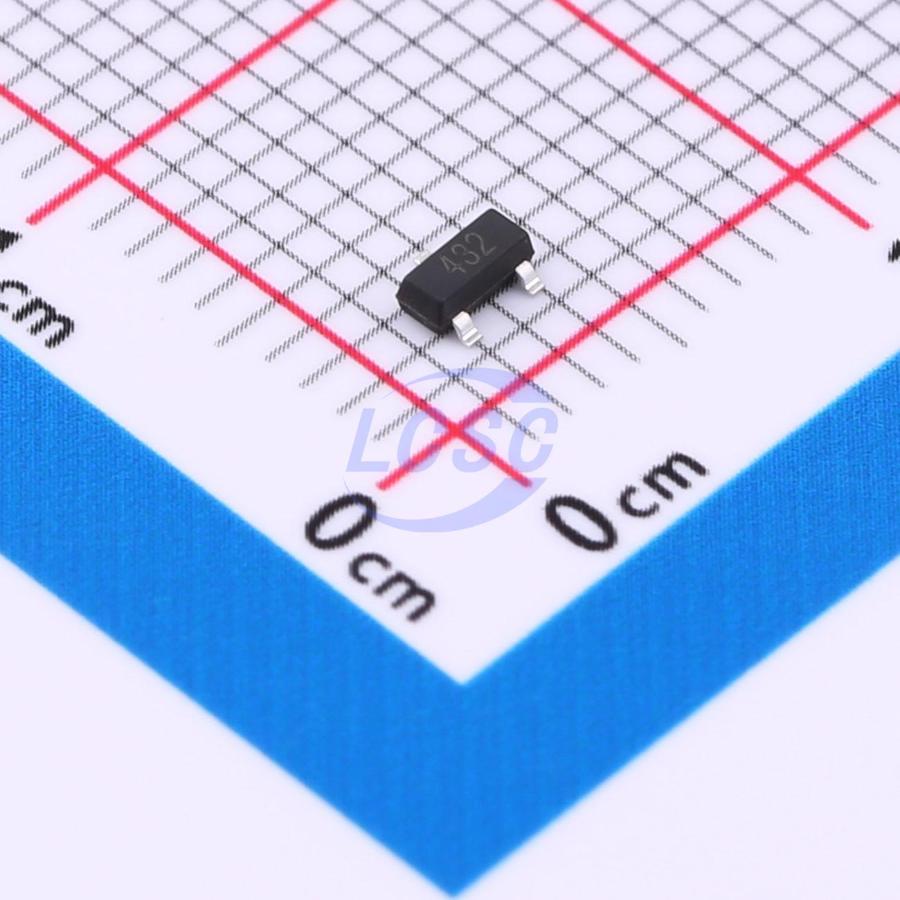

TL432
Shunt Voltage Reference IC Adjustable 1.25V~18V ±0.5% 100mA SOT-23-3
SOT-23-3RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TL432
- Store part #
- C42407102
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C42407102
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.92 | ₹79.20 |
| 100+ | ₹6.27 | ₹627.00 |
| 300+ | ₹5.44 | ₹1,632.00 |
| 3,000+ | ₹4.82 | ₹14,460.00 |
| 6,000+ | ₹4.31 | ₹25,860.00 |
| 9,000+ | ₹4.06 | ₹36,540.00 |
10 × ₹7.92
₹79.20
excl. GST
₹93.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL432
₹79.20 for 10 + GST
Specifications
- Quiescent Current
- 35uA
- Output Voltage
- 1.25V~18V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 30uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -25℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
TL432 is a three-terminal adjustable shunt regulator whose output voltage can be set to any value between Vref (approximately 1.25V) and 18V using two external resistors. The active output circuit provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications, including on-board voltage regulation, adjustable power supplies, and power supply on/off control.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Precision current limiter
Key features
- Adjustable output voltage range: 1.25V ~ 18V
- Stable capacitive load
- Low temperature drift 16mV
- Typical operating current as low as 35μA
- Current capacity range 0.1 - 100mA, accuracy: ±0.5%
- SOT23 package
- Low output noise voltage
