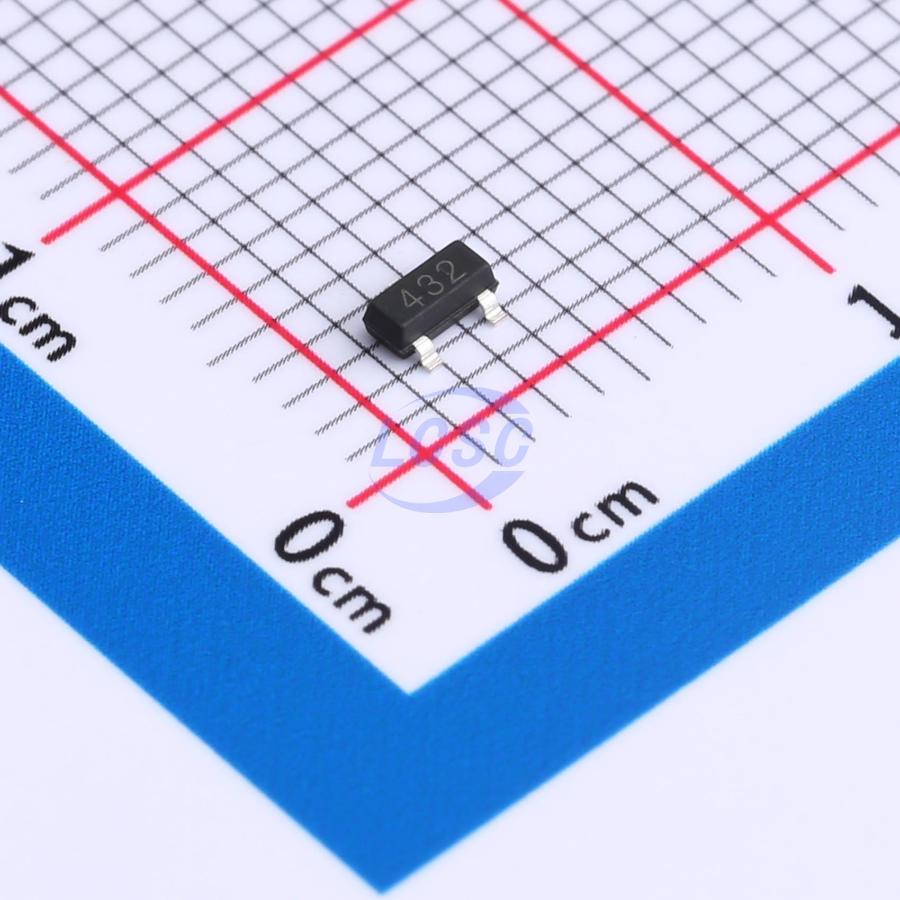

MSKSEMI

TL432

Shunt Voltage Reference IC Adjustable 1.25V~18V ±0.5% 100mA SOT-23

SOT-23RoHSActive

Voltage reference devices

Manufacturer: MSKSEMI
Manufacturer part #: TL432
Store part #: C5189807
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

21,220 in stock

#C5189807

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹5.91	₹59.10
100+	₹4.76	₹476.00
300+	₹4.19	₹1,257.00
3,000+	₹3.49	₹10,470.00
6,000+	₹3.15	₹18,900.00
9,000+	₹2.98	₹26,820.00

Quantity (min 10, multiples of 10)

10 × ₹5.91

₹59.10

excl. GST

₹69.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TL432

₹59.10 for 10 + GST

Specifications

Output Voltage: 1.25V~18V
Tolerance: ±0.5%
Voltage - Supply: 1.225V~1.275V
Minimum Cathode Current for Regulation: 100uA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -40℃~+125℃
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

The TL432/TL432R is a three-terminal adjustable shunt regulator highly accurate 1.25V bandgap reference with a 0.5% tolerance. The device offers thermal stability, wide operating current (50mA) and an extended temperature range of 0 to 105°C for operation in power supply applications. The TL432/TL432R offers a wide operating voltage range of up to 18V and is an excellent choice for voltage reference requirements in an isolated feedback circuit for 3.0V to 3.3V switching mode power supplies. The tight tolerance quarantees a lower design cost for the power supply manufacturer by virtually eliminating the need for an extra power supply manufacturing process of the power supply.
