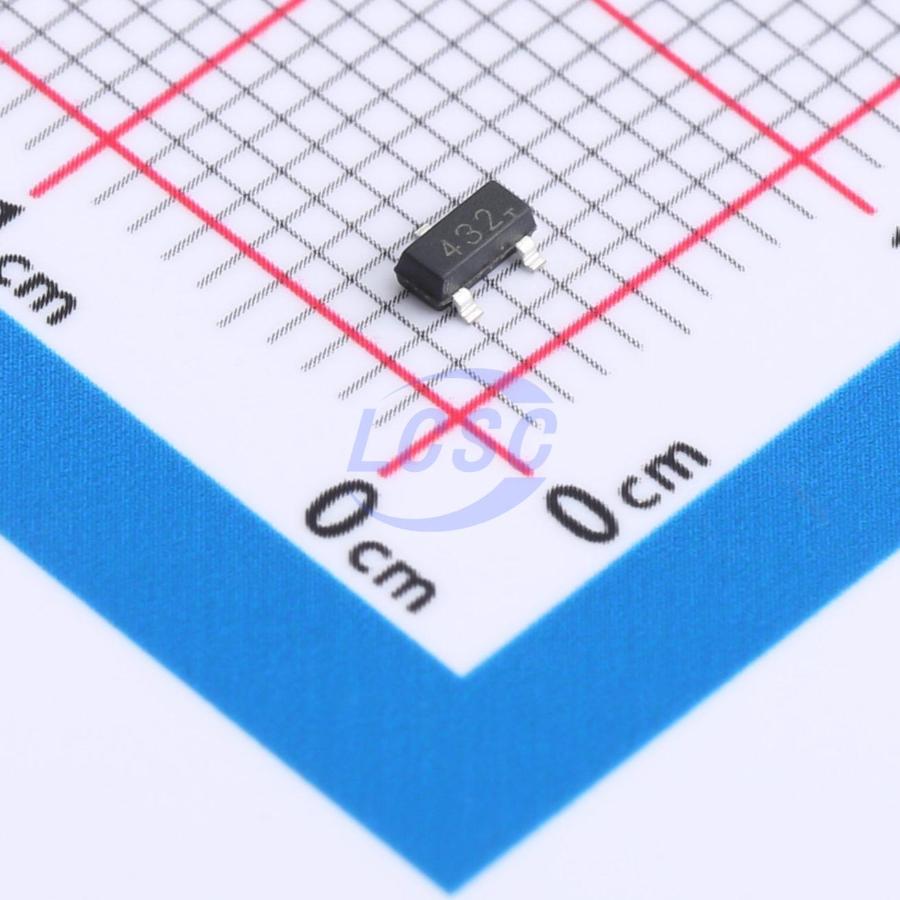

Guangdong Hottech

TL432

1.25V~15V 1.25V~15V 50mA Adjustable SOT-23 Voltage Reference RoHS

SOT-23ROHS CompliantActive

ADJUSTABLE ACCURATE REFERENCE SOURCE

Manufacturer: Guangdong Hottech
Manufacturer part #: TL432
Store part #: C5364242
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,890 in stock

#C5364242

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.60	₹86.00
100+	₹6.75	₹675.00
300+	₹5.82	₹1,746.00
3,000+	₹5.12	₹15,360.00
6,000+	₹4.56	₹27,360.00
9,000+	₹4.29	₹38,610.00

Quantity (min 10, multiples of 10)

10 × ₹8.60

₹86.00

excl. GST

₹101.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TL432

₹86.00 for 10 + GST

Specifications

Output Voltage: 1.25V~15V
Tolerance: ±1%;±2%
Voltage - Supply: 1.25V~15V
Minimum Cathode Current for Regulation: 600uA
Reference Type: Parallel
Output Current: 50mA
Operating Temperature: 0℃~+70℃
Features: Built-in output buffer
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.038 g

Overview

The TL432 is a three-terminal adjustable shunt regulator highly accurate 1.25V bandgap reference with 1%, 2% tolerance. The device offers thermal stability, wide operating current (50mA) and an extended temperature range of 0° to 105°C for operation in power supply applications. The TL432 offers a wide operating voltage range of up to 12V and is an excellent choice for voltage reference requirements in an isolated feedback circuit for 3.0V~3.3V switching mode power supplies. The tight tolerance quarantees a lower design cost for the power supply manufacturer by virtually eliminating the need for an extra power supply manufacturing process of the power supply.
