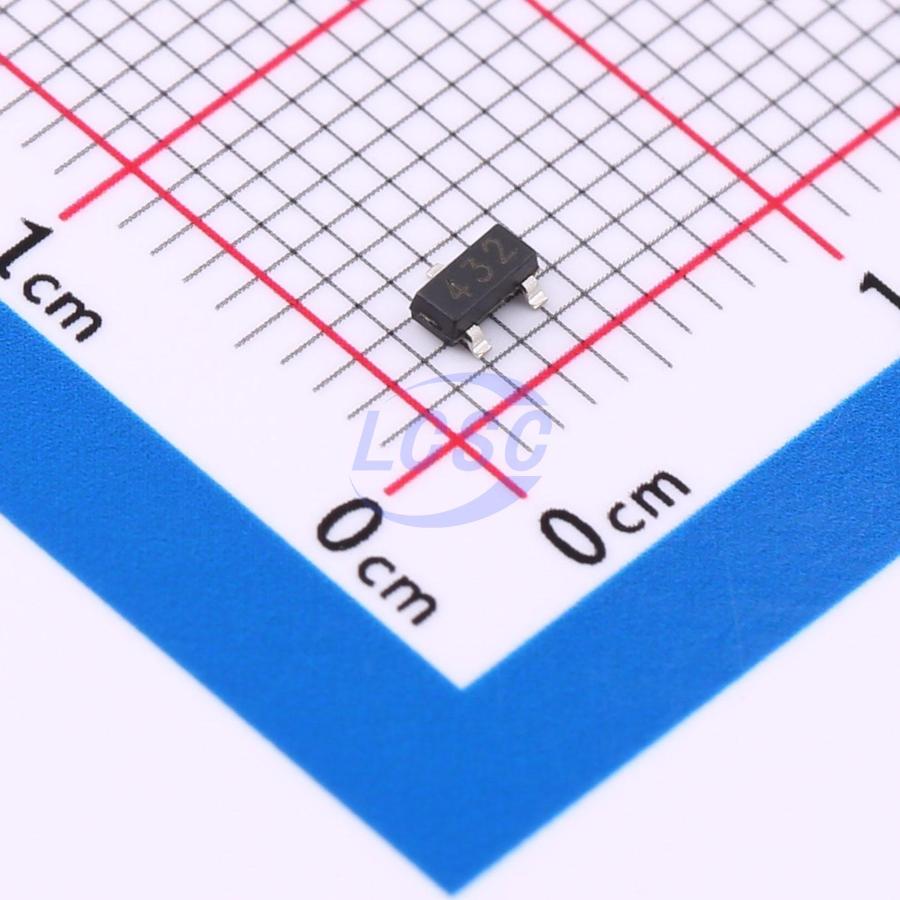

TL432AT2
1.25V~18V ±0.5% 1.25V~15V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
three-terminal adjustable shunt regulator
- Manufacturer
- Siliup
- Manufacturer part #
- TL432AT2
- Store part #
- C41355116
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31,150 in stock
#C41355116
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.34 | ₹63.40 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 3,000+ | ₹3.96 | ₹11,880.00 |
| 6,000+ | ₹3.56 | ₹21,360.00 |
| 9,000+ | ₹3.36 | ₹30,240.00 |
10 × ₹6.34
₹63.40
excl. GST
₹74.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL432AT2
₹63.40 for 10 + GST
Specifications
- Output Voltage
- 1.25V~18V
- Quiescent Current
- 400nA
- Tolerance
- ±0.5%
- Voltage - Supply
- 1.25V~15V
- Minimum Cathode Current for Regulation
- 100uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The TL432AT2 is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn-on characteristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators. The TL432AT2 precision reference is offered in voltage tolerance: 0.5%.
Applications
- Charger
- Voltage Adapter
- Switching Power Supply
- Graphic Card Precision Voltage Reference
Key features
- Programmable Precise Output Voltage from 1.25V to 18V
- High Stability under Capacitive Load
- Low Equivalent Full-range Temperature Coefficient
- Sink Current Capacity from 1mA to 100 mA
- Low Output Noise
- Wide Operating Range of -40 to 125 °C
