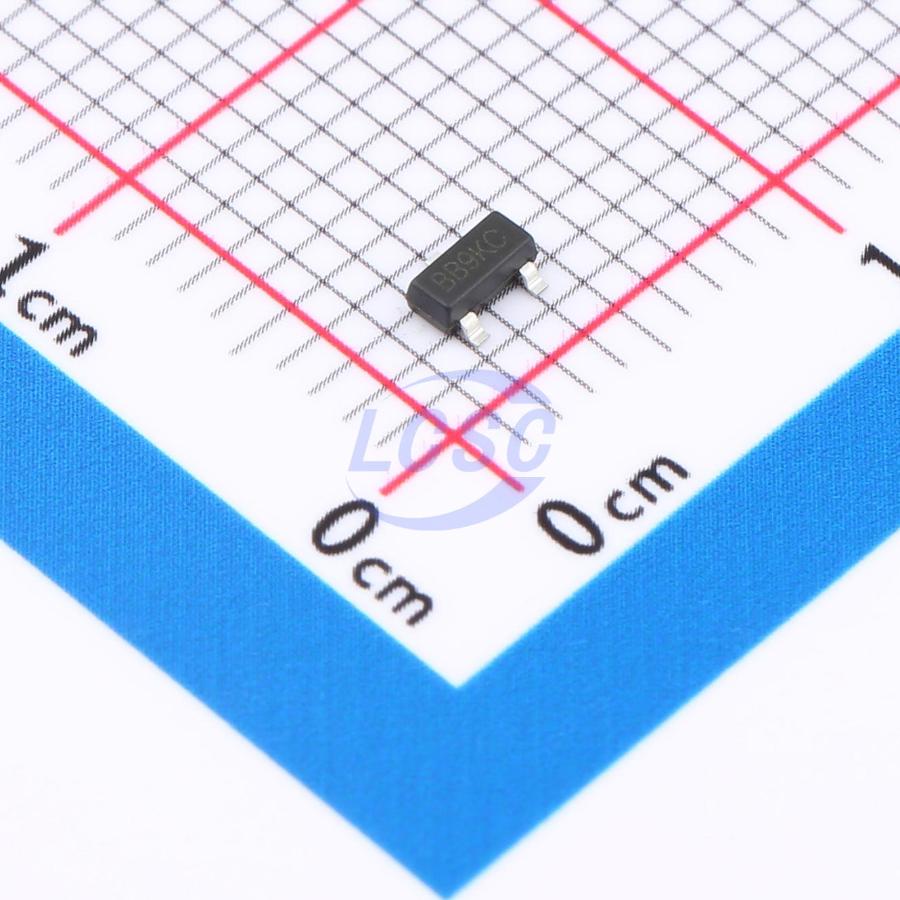

TL432BCDBZR-TP
Shunt Voltage Reference IC Adjustable 2.495V~36V ±0.5% 100mA SOT-23
SOT-23RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TL432BCDBZR-TP
- Store part #
- C48886806
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,760 in stock
#C48886806
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.29 | ₹51.45 |
| 50+ | ₹8.07 | ₹403.50 |
| 150+ | ₹6.96 | ₹1,044.00 |
| 500+ | ₹6.13 | ₹3,065.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
5 × ₹10.29
₹51.45
excl. GST
₹60.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL432BCDBZR-TP
₹51.45 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
This is a three-terminal adjustable shunt voltage regulator that can set the output voltage to any value between Vref (approximately 2.495V) and 36V using two external resistors. The device features an output impedance of 0.15Ω (typical). Its active output circuit provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications. These applications include on-board voltage regulation, adjustable power supplies, and switching power supplies.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Secondary-side voltage regulation for flyback switching power supplies
Key features
- Adjustable output voltage range: 2.495V~36V
- Low dynamic output resistance: 0.15Ω (typical)
- Low temperature drift: 5mV (typical)
- Low output noise
- High stability with capacitive loads
- Current capacity range: 1~100 mA
- Accuracy: 0.5%
- Package: SOT23
