PJSEMIDatasheet (PDF)

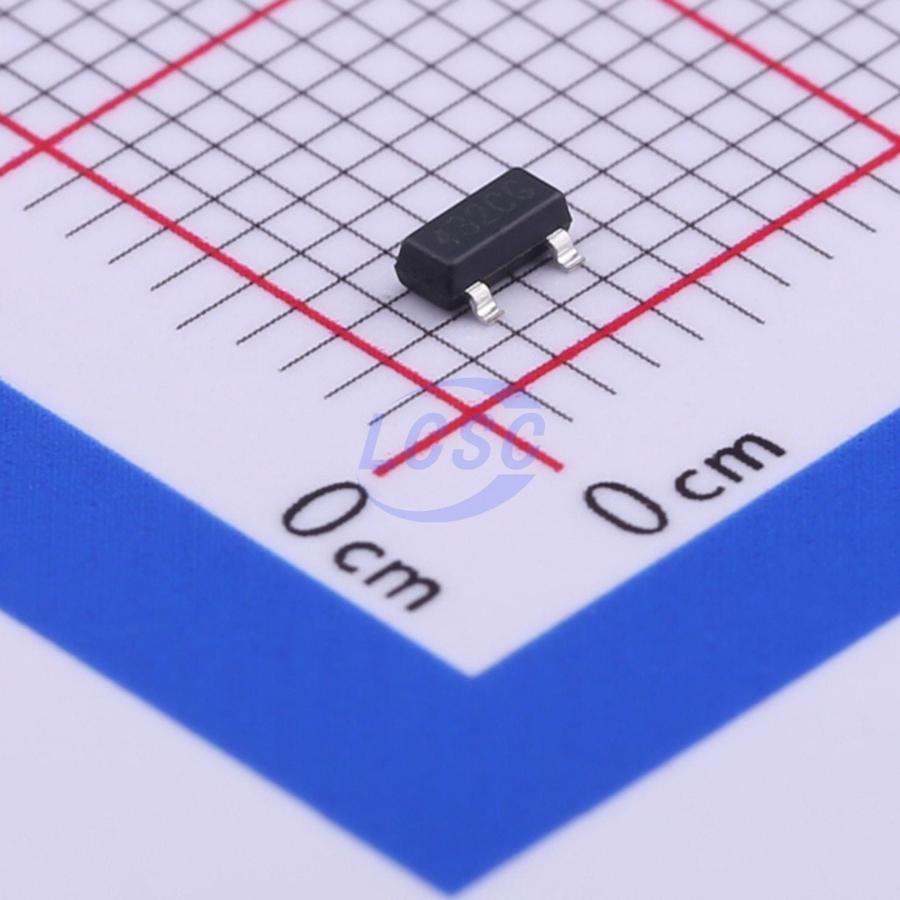

TL432C
1.24V~18V ±0.5% 18V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
Programmable Precision Reference
- Manufacturer
- PJSEMI
- Manufacturer part #
- TL432C
- Store part #
- C411755
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,660 in stock
#C411755
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.42 | ₹94.20 |
| 100+ | ₹7.59 | ₹759.00 |
| 300+ | ₹6.69 | ₹2,007.00 |
| 3,000+ | ₹5.29 | ₹15,870.00 |
| 6,000+ | ₹4.74 | ₹28,440.00 |
| 9,000+ | ₹4.47 | ₹40,230.00 |
10 × ₹9.42
₹94.20
excl. GST
₹111.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL432C
₹94.20 for 10 + GST
Specifications
- Output Voltage
- 1.24V~18V
- Tolerance
- ±0.5%
- Voltage - Supply
- 18V
- Minimum Cathode Current for Regulation
- 80uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The TL432 is a Three-terminal adjustable shunt regulator highly accurate 1.24V bandgap reference. The device offers thermal stability, wide operating current and an extended temperature range of 0 to 105 °C for operation in power supply applications. The TL432 offers a wide operating voltage range of up to 18V and is an excellent choice for voltage reference requirements in an isolated feedback circuit for 3.0V to 3.3V switching mode power supplies.
Applications
- Adjustable voltage and current references
- Voltage monitoring
- Replacement of zener diode
- Comparator with integrated reference
Key features
- Wide programmable prise output voltage from 1.24V to 1
- Sink current capability from 55μA to 100mA
- Low output noise
- Wide Operating Range of -40 to 125°C
