UTC

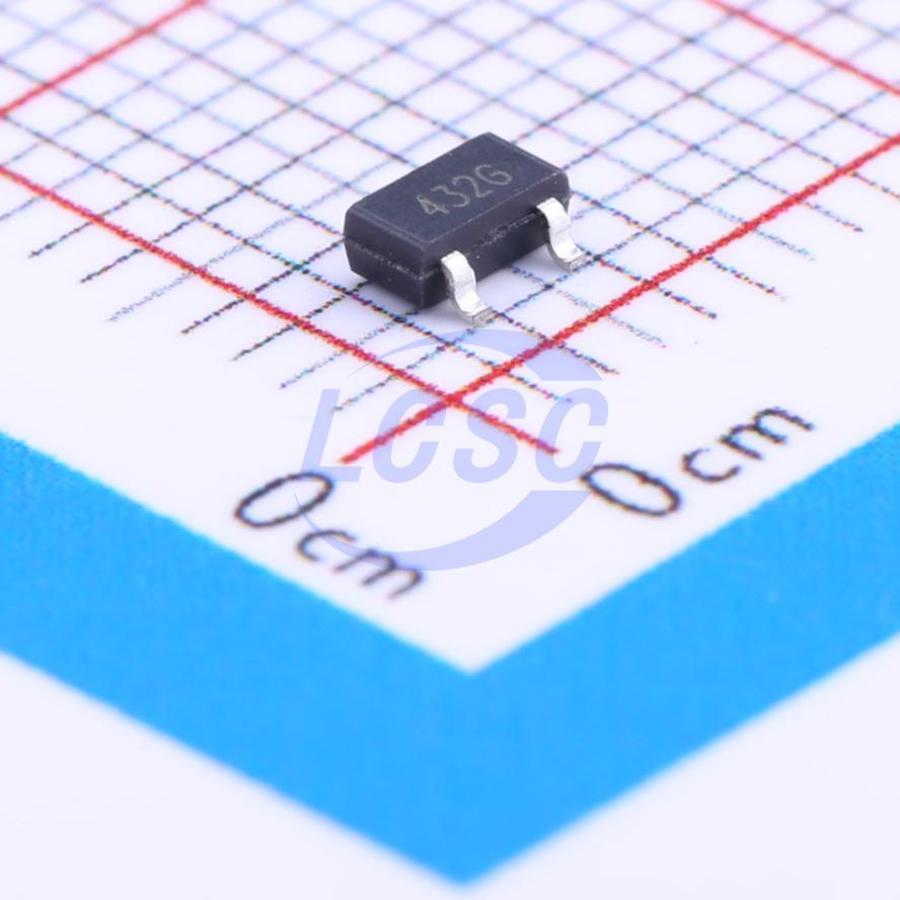

TL432G-AE3-R

1.25V~15V ±1% 50mA Adjustable SOT-23 Voltage Reference RoHS

SOT-23ROHS CompliantActive

1.25V Precision Adjustable Shunt Reference Regulators

Manufacturer: UTC
Manufacturer part #: TL432G-AE3-R
Store part #: C171461
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,720 in stock

#C171461

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.26	₹61.30
50+	₹9.62	₹481.00
150+	₹8.28	₹1,242.00
500+	₹7.29	₹3,645.00
3,000+	₹6.50	₹19,500.00
6,000+	₹6.10	₹36,600.00

Quantity (min 5, multiples of 5)

5 × ₹12.26

₹61.30

excl. GST

₹72.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TL432G-AE3-R

₹61.30 for 5 + GST

Specifications

Output Voltage: 1.25V~15V
Tolerance: ±1%
Minimum Cathode Current for Regulation: 1mA
Reference Type: Parallel
Output Current: 50mA
Operating Temperature: -40℃~+85℃
Features: Built-in output buffer
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

The UTC TL432 is a three-terminal adjustable shunt regulator highly accurate 1.25V band gap reference with 0.5%, 1% tolerance. The device offers thermal stability, wide operating current (50mA) and an extended temperature range of 0°C to 85°C for operation in power supply applications. The UTC TL432 offers a wide operating voltage range of up to 12V and is an excellent choice for voltage reference requirements in an isolated feedback circuit for 3.0V~3.3V switching mode power supplies. The tight tolerance guarantees a lower design cost for the power supply manufacturer by virtually eliminating the need for an extra power supply manufacturing process of the power supply.
