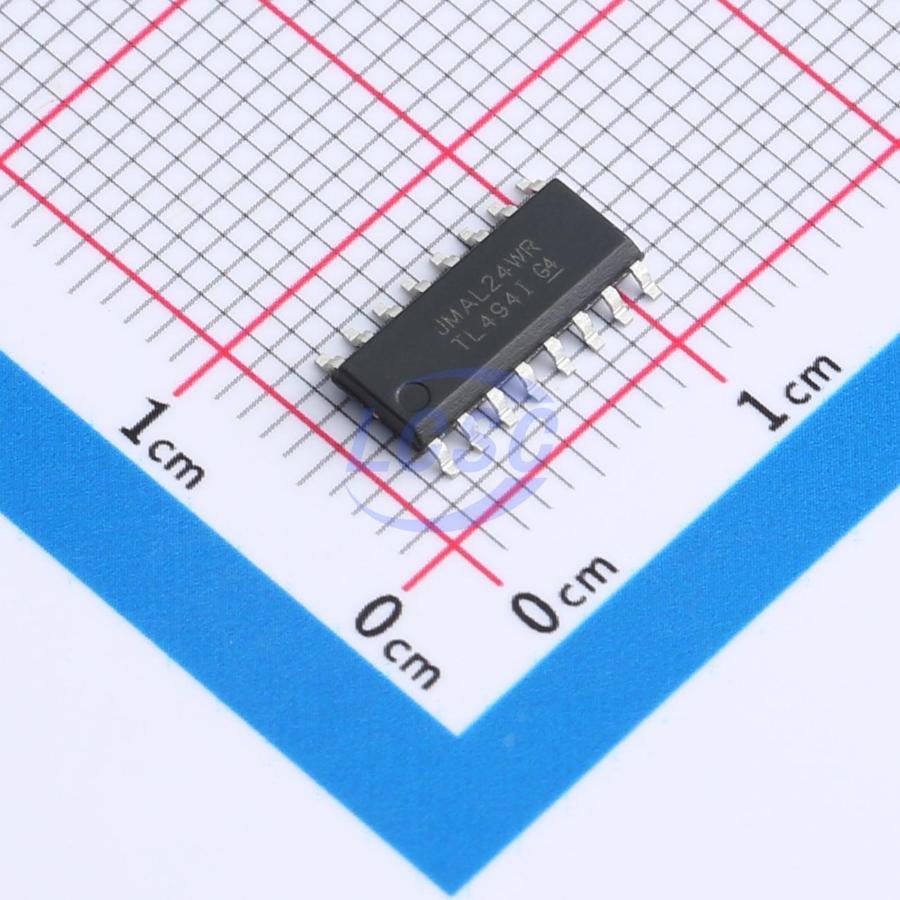

TDSEMIC

TL494-TD

300kHz 200mA SOP-16 Voltage Regulators - DC DC Switching Regulators RoHS

SOP-16ROHS CompliantActive

Switch Mode Pulse Width Modulation Control Circuit

Manufacturer: TDSEMIC
Manufacturer part #: TL494-TD
Store part #: C42422104
Package / case: SOP-16
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,530 in stock

#C42422104

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
5+	₹11.95	₹59.75
50+	₹10.53	₹526.50
150+	₹9.83	₹1,474.50
500+	₹9.30	₹4,650.00
2,500+	₹8.86	₹22,150.00
5,000+	₹8.65	₹43,250.00

Quantity (min 5, multiples of 5)

5 × ₹11.95

₹59.75

excl. GST

₹70.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TL494-TD

₹59.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: 0℃~+70℃@(TA)
Number of Outputs: 2
Frequency - Switching: 300kHz
Topology: Push-Pull
Operating Voltage: 7V~40V
Switch tube (built-in/external): Built-in
Output Current: 200mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.2 g

Overview

The TL494 is a fixed frequency, pulse width modulation control circuit designed primarily for SWITCHMODE power supply control.

Key features

Complete Pulse Width Modulation Control Circuitry
On-Chip Oscillator with Master or Slave Operation
On-Chip Error Amplifiers
On-Chip 5.0 V Reference
Adjustable Deadtime Control
Uncommitted Output Transistors Rated to 500 mA Source or Sink
Output Control for Push-Pull or Single-Ended Operation
Undervoltage Lockout
