HANSCHIP semiconductorDatasheet (PDF)

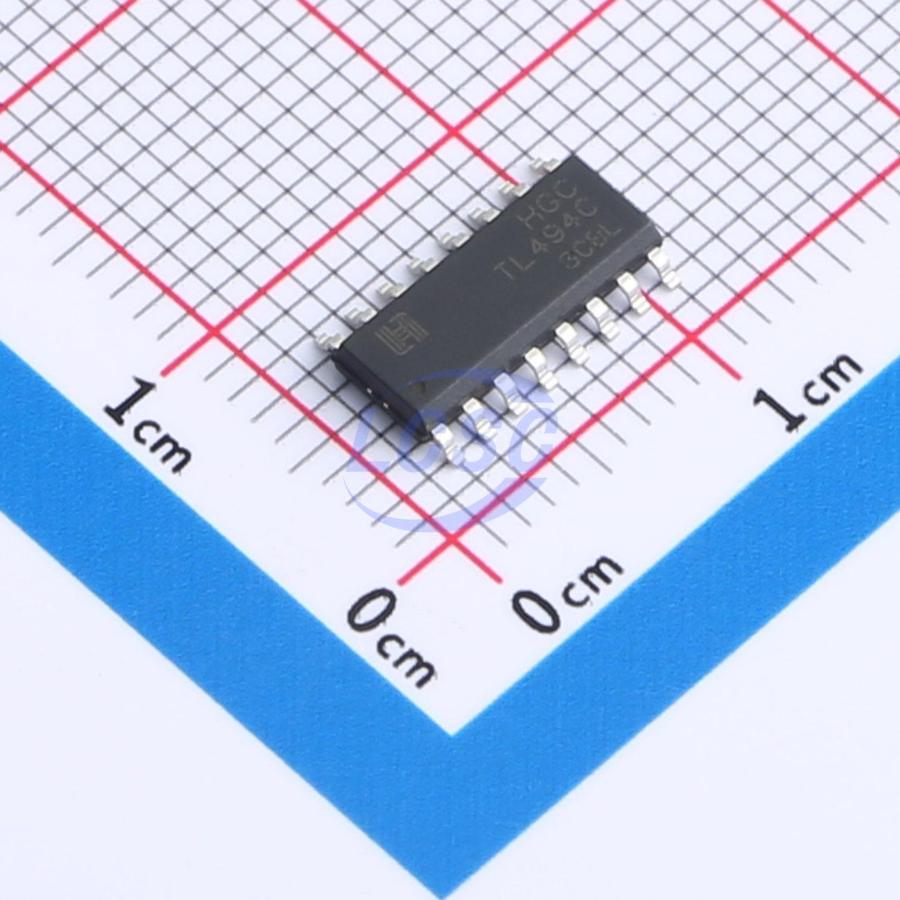

TL494CDRG
6kHz~14kHz SOP-16 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-16ROHS CompliantActive
Switch Mode Pulse Width Modulation Control Circuit
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- TL494CDRG
- Store part #
- C19723715
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C19723715
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.59 | ₹72.95 |
| 50+ | ₹11.36 | ₹568.00 |
| 150+ | ₹9.74 | ₹1,461.00 |
| 500+ | ₹8.53 | ₹4,265.00 |
| 2,500+ | ₹7.57 | ₹18,925.00 |
| 5,000+ | ₹7.08 | ₹35,400.00 |
5 × ₹14.59
₹72.95
excl. GST
₹86.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL494CDRG
₹72.95 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Frequency - Switching
- 6kHz~14kHz
- Topology
- Push-Pull
- Operating Voltage
- 7V~40V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.347 g
Overview
TL494 is a fixed-frequency pulse-width modulation control circuit, primarily used for switching power supply control.
Key features
- Complete PWM control circuit
- On-chip oscillator with master/slave operation mode
- On-chip error amplifier
- On-chip 5.0V reference voltage
- Adjustable dead-time control
- Uncommitted output transistors, source or drain current rating up to 500 mA
- Output control for push-pull or single-ended operation
- Undervoltage lockout
- DIP-16 package
- SOP-16 package
- TSSOP-16 package
