TECH PUBLICDatasheet (PDF)

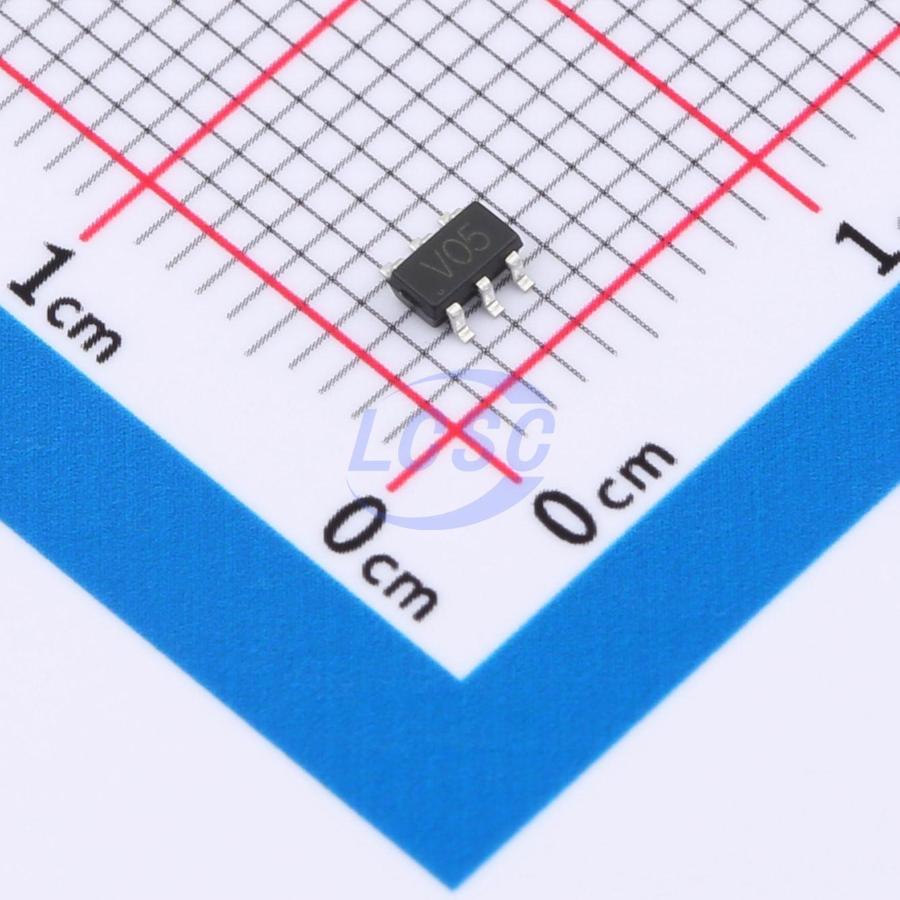

TLSD05H4U
22VC Clamp 4A@8/20us Ipp SOT-163
SOT-163RoHSActive
5VWM 22VC SOT-163
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TLSD05H4U
- Store part #
- C22435146
- Package / case
- SOT-163
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C22435146
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.16 | ₹516.00 |
| 300+ | ₹4.54 | ₹1,362.00 |
| 3,000+ | ₹4.07 | ₹12,210.00 |
| 6,000+ | ₹3.69 | ₹22,140.00 |
| 9,000+ | ₹3.51 | ₹31,590.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLSD05H4U
₹64.20 for 10 + GST
Specifications
- Clamping Voltage
- 22V
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 6V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- USB 2.0 power and data line
Key features
- Low operating voltage: 5V
- Ultra low leakage: nA level
- Low clamping voltage
- Air discharge: ±20kV
- Contact discharge: ±20kV
- IEC61000 - 4 - 5 (Lightning) 4A (8/20μs)
- These are Pb - Free Devices
