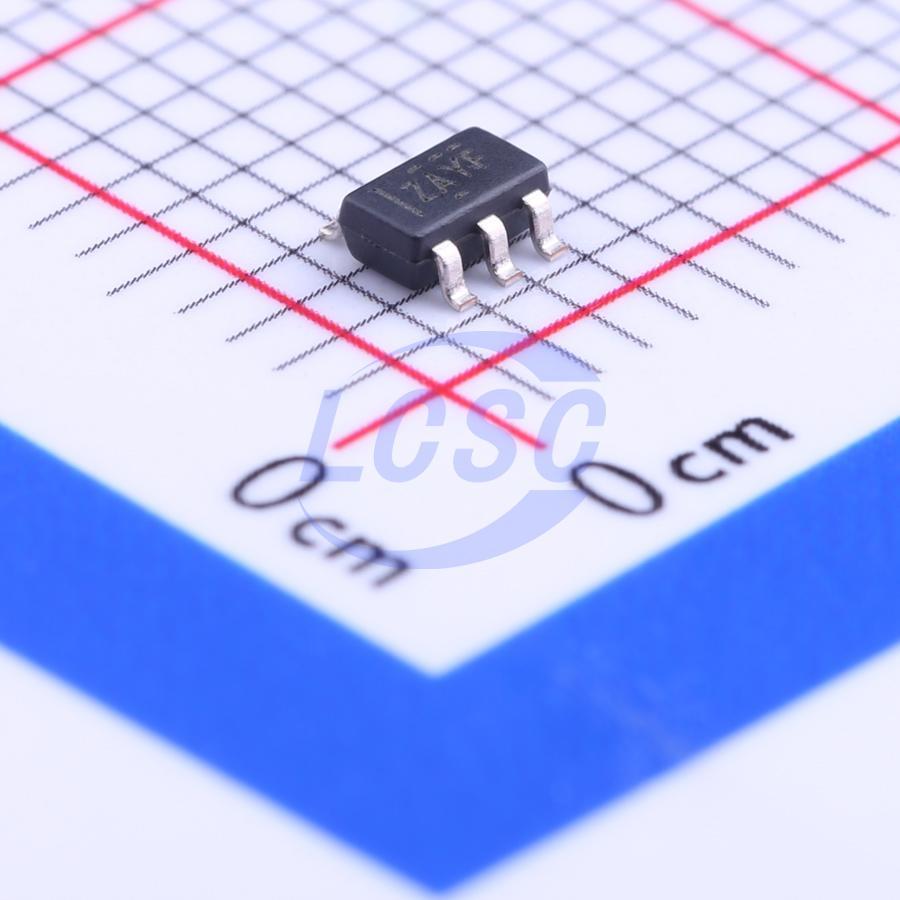

TLV1701AIDBVR

The TLV170x series of devices offer a wide power supply range, rail-to-rail input, low quiescent current, and low propagation delay. The open-collector output has the advantage of being able to pull the output to any voltage rail (up to +36V higher than the negative supply), regardless of the TLV170x power supply voltage. These devices are available in single-channel, dual-channel, and quad-channel versions. The low input offset voltage, low input bias current, low supply current, and open-collector configuration enable the TLV170x series to flexibly handle most applications, from simple voltage detection to driving a single relay. All devices are rated for operation over the extended industrial temperature range of -40°C to +125°C.

Applications

• Overvoltage and undervoltage detectors
• Window comparators
• Overcurrent detectors
• Zero-crossing detectors
• System monitoring for: power supplies, white goods, industrial sensors, automotive, medical

Key features

• Supply range: +2.2V to +36V or ±1.1V to ±18V
• Low quiescent current: 55μA per comparator
• Input common-mode range includes both supply rails
• Low propagation delay: 560ns
• Low input offset voltage: 300μV
• Open-collector output: up to 36V above negative supply, independent of supply voltage
• Industrial temperature range: -40°C to +125°C
• Small packages — Single: SC70-5, SOT-23-5, and SOT553-5; Dual: VSSOP-8, X2QFN-8; Quad: TSSOP-14
