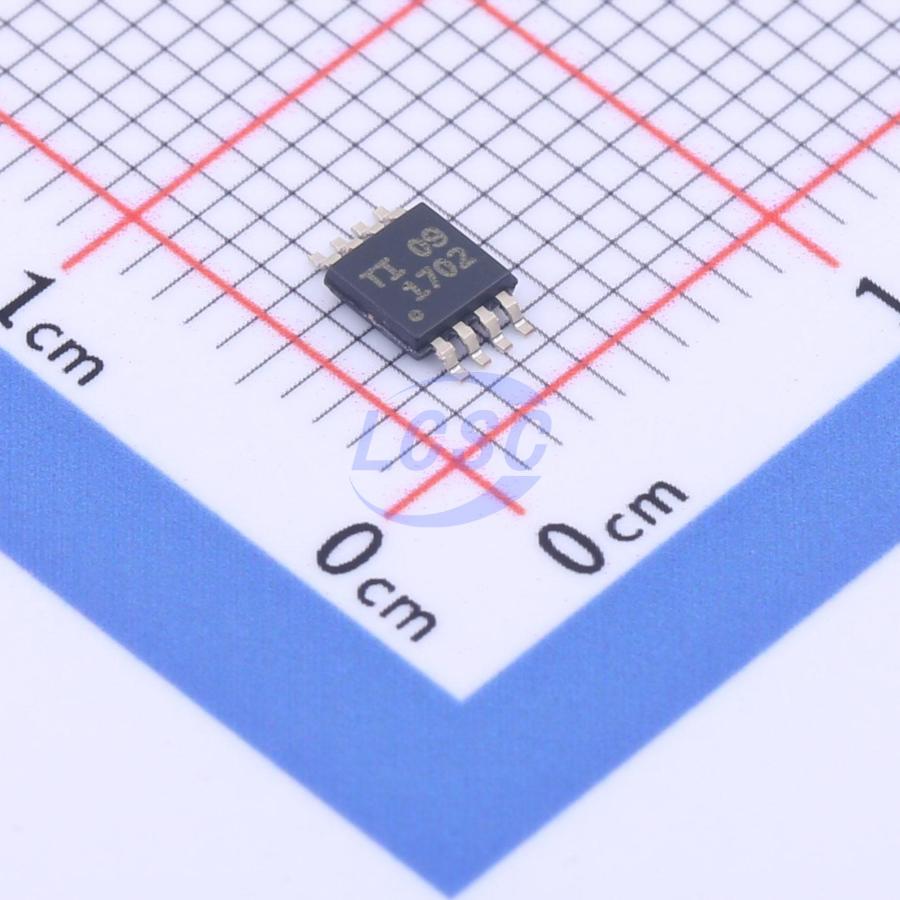

TLV1702AIDGKR

2 55uA 3.5mV Rail-to-rail input VSSOP-8 Comparators RoHS

VSSOP-8ROHS3 CompliantActive

Micro-power comparator with an input voltage range from 2.2V to 36V

Manufacturer: TI
Manufacturer part #: TLV1702AIDGKR
Store part #: C2870937
Package / case: VSSOP-8
Category: Comparators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,437 in stock

#C2870937

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹144.22	₹144.22
10+	₹119.90	₹1,199.00
30+	₹97.09	₹2,912.70
100+	₹81.89	₹8,189.00
500+	₹75.16	₹37,580.00
1,000+	₹72.12	₹72,120.00

Quantity (min 1)

1 × ₹144.22

₹144.22

excl. GST

₹170.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TLV1702AIDGKR

₹144.22 for 1 + GST

Specifications

Number of Channels: 2
Input Offset Current(Ios): 0.5nA
Operating Temperature: -40℃~+125℃
Dual Supply: 1.1V~18V;-18V~-1.1V
Ib - Input Bias Current: 5nA
Input Offset Voltage Drift(Vos TC): 20uV/℃
Output Type: Open Collector
Propagation Delay(tpd): 560ns
Quiescent Current(Iq): 55uA
Vos - Input Offset Voltage: 3.5mV
Maximum Power Supply Range (Vdd-Vss): 36V
Rail to Rail: Rail-to-rail input
Response Time (tr): 0.37us
Single Supply: 2.2V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

The TLV170x series of devices offers a wide power supply range, rail-to-rail inputs, low quiescent current, and low propagation delay. The open-collector output has the advantage of being able to pull the output to any voltage rail (up to +36V higher than the negative supply) without being affected by the TLV170x power supply voltage. These devices are available in single-channel (TLV1701), dual-channel (TLV1702), and quad-channel (TLV1704) versions. The low input offset voltage, low input bias current, low supply current, and open-collector configuration enable the TLV170x series to flexibly handle most applications, from simple voltage detection to driving a single relay. All devices are rated for operation over the extended industrial temperature range of -40°C to +125°C.

Applications

Overvoltage and undervoltage detectors
Window comparators
Overcurrent detectors
Zero-crossing detectors
System monitoring for:
Power supplies
White goods
Industrial sensors
Automotive
Medical

Key features

Supply range: +2.2V to +36V or ±1.1V to ±18V
Low quiescent current: 55μA per comparator
Input common-mode range includes both supply rails
Low propagation delay: 560ns
Low input offset voltage: 300μV
Open-collector output: up to 36V above negative supply, independent of supply voltage
Industrial temperature range: -40°C to +125°C
Small packages — Single: SC70-5, SOT-23-5, and SOT553-5; Dual: VSSOP-8, X2QFN-8; Quad: TSSOP-14
