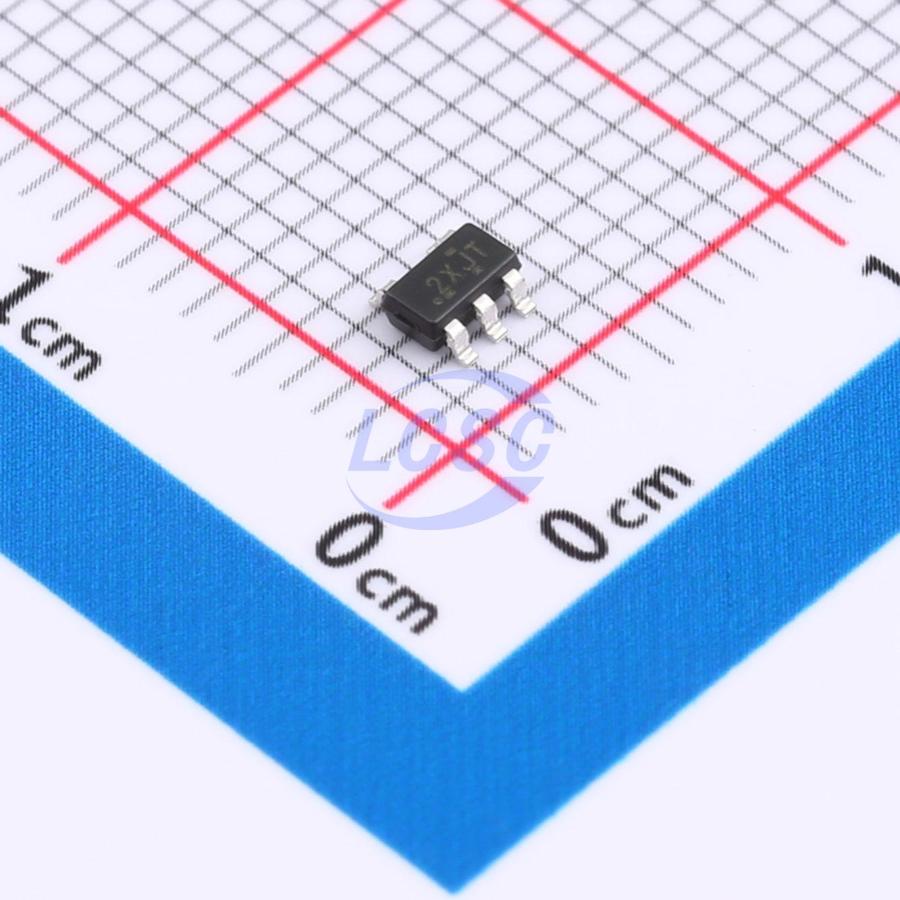

TLV1811DBVR
1 5uA 500uV Rail-to-rail input SOT-23-5 Comparators RoHS
40 V Rail-to-Rail Input Comparators with Push-Pull or Open-Drain Output Options
- Manufacturer
- TI
- Manufacturer part #
- TLV1811DBVR
- Store part #
- C5373003
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31,028 in stock
#C5373003
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.27 | ₹134.27 |
| 10+ | ₹108.63 | ₹1,086.30 |
| 30+ | ₹96.04 | ₹2,881.20 |
| 100+ | ₹83.43 | ₹8,343.00 |
| 500+ | ₹75.82 | ₹37,910.00 |
| 1,000+ | ₹71.92 | ₹71,920.00 |
1 × ₹134.27
₹134.27
excl. GST
₹158.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV1811DBVR
₹134.27 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 0.01pA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Features
- ESD protection;Fail-safe function
- Ib - Input Bias Current
- 0.15pA
- Input Offset Voltage Drift(Vos TC)
- 1.2uV/℃
- Output Type
- Push-pull
- Propagation Delay(tpd)
- 420ns
- Quiescent Current(Iq)
- 5uA
- Vos - Input Offset Voltage
- 500uV
- Maximum Power Supply Range (Vdd-Vss)
- 40V
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 2.4V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.058 g
Overview
The TLV181x and TLV182x are a family of 40 Volt single, dual and quad channel comparators with multiple output options. The family offers rail-to-rail inputs with push-pull or open-drain output options. The family has an excellent speed-to-power combination with a propagation delay of 420 ns with a full supply voltage range of 2.4 V to 40 V with a quiescent supply current of only 5 μA per channel. All devices include a Power-On Reset (POR) feature. This makes sure the output is in a known state until the minimum supply voltage has been reached before the output responds to the inputs, thus preventing false outputs during system power-up and powerdown. The TLV181x comparators have a push-pull output stage capable of sinking and sourcing milliamps of current when controlling an LED or driving a capacitive load such as a MOSFET gate. The TLV182x comparators have an open-drain output stage that can be pulled up to 40 V independent of comparator supply voltage.
Applications
- Appliances
- Factory automation and control
- Motor drives
- Infotainment and cluster
Key features
- Wide 2.4 V to 40 V supply range
- Rail-to-rail input
- Power-On Reset (POR) for known start-up
- Low input offset voltage 500 μV
- 420 ns typical propagation delay
- Low quiescent current 5 μA per channel
- Low input bias current 150 fA
- Open-drain output option (TLV182x)
- Push-pull output option (TLV181x)
- Full -40°C to +125°C temperature range
- 2 kV ESD protection
- Functional Safety-Capable Documentation available to aid functional safety system design
