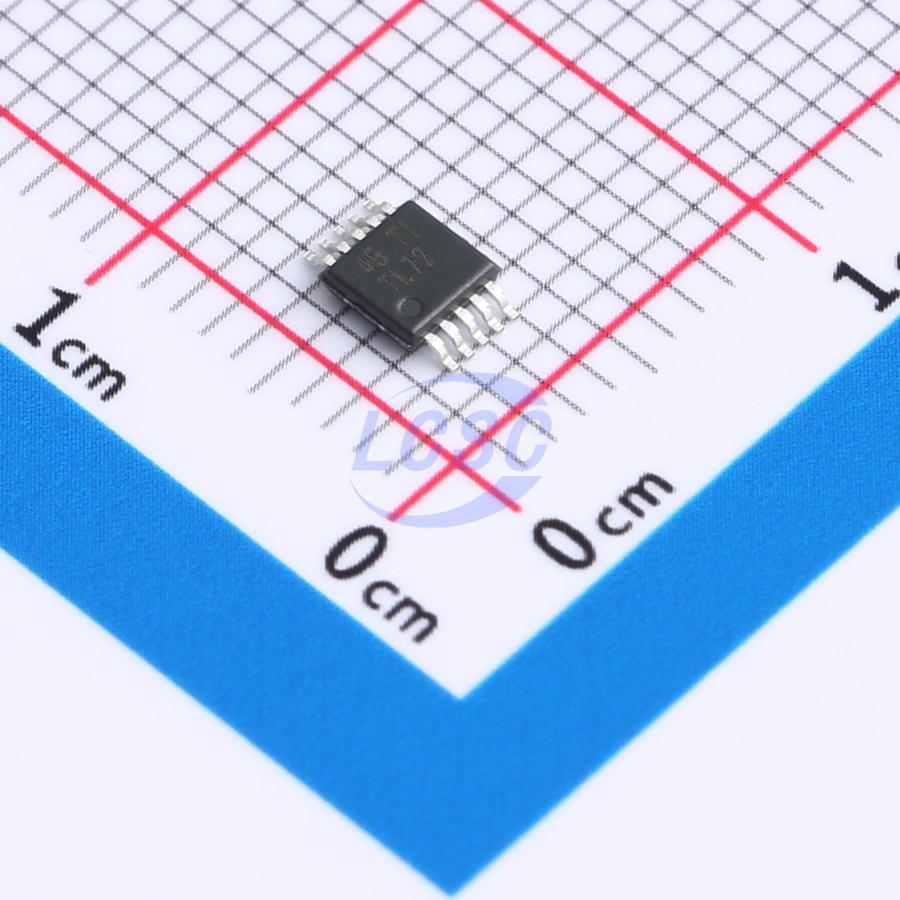

TLV1872DGSR
2 70uA 500uV Rail-to-rail input VSSOP-10 Comparators RoHS
- Manufacturer
- TI
- Manufacturer part #
- TLV1872DGSR
- Store part #
- C22460848
- Package / case
- VSSOP-10
- Category
- Comparators
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,100 in stock
#C22460848
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹219.04 | ₹219.04 |
| 10+ | ₹192.96 | ₹1,929.60 |
| 30+ | ₹174.49 | ₹5,234.70 |
| 100+ | ₹157.77 | ₹15,777.00 |
| 500+ | ₹149.94 | ₹74,970.00 |
| 1,000+ | ₹146.68 | ₹1,46,680.00 |
1 × ₹219.04
₹219.04
excl. GST
₹258.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per bag
TLV1872DGSR
₹219.04 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 10pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- -20V~-1.35V;1.35V~20V
- Ib - Input Bias Current
- 500pA
- Input Offset Voltage Drift(Vos TC)
- 1.2uV/℃
- Output Type
- Push-pull
- Propagation Delay(tpd)
- 65ns
- Input Hysteresis Voltage (Vhys)
- 2.7mV
- Quiescent Current(Iq)
- 70uA
- Vos - Input Offset Voltage
- 500uV
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 2.7V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 2,500 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.085 g
Overview
The TLV187x is a family of 40V high-speed comparators offering rail-to-rail inputs and a push-pull output stage with separate input and output supply pins. These features, combined with a 65ns propagation delay, make this family well-suited for bipolar zero-crossing detection, Class-D audio amplifier systems, and other applications requiring level translation and propagation delay symmetry. The device includes a power-on reset (POR) function that holds the output in a known state until the minimum supply voltage is reached, after which the output responds to the input. This prevents erroneous outputs during system power-up and power-down. The TLV187x features a push-pull output stage, making it an excellent choice for applications requiring symmetrical output rise and fall response. With separate input and output supplies, the device enables level translation for downstream devices operating at lower voltages.
Applications
- Class D amplifier
- Level shifting
- Motor driving
- Bipolar zero-crossing detector
Key features
- Wide supply range: 2.7V to 40V (±1.35V to ±20V)
- 65ns propagation delay
- Single-supply or split-supply operation
- "Floating" push-pull outputs with independent supply
- Rail-to-rail inputs
- Power-on reset (POR)
- Low supply current: 75μA per channel
- Temperature range: -40°C to +125°C
