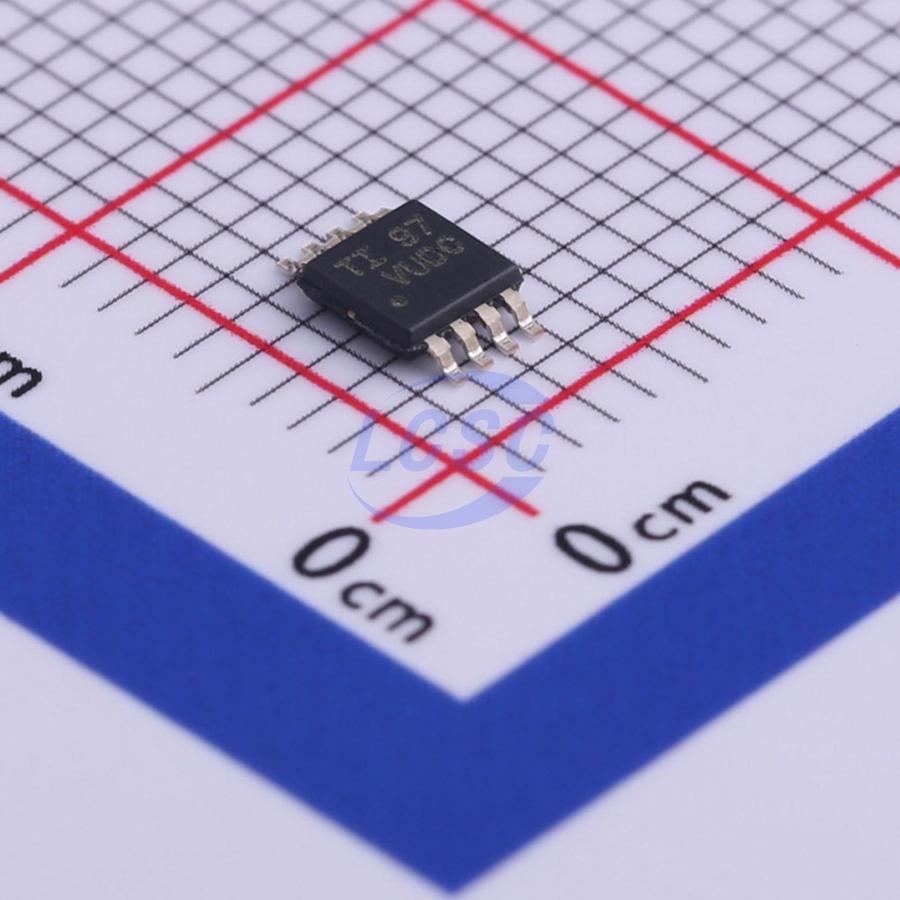

TLV3202AIDGKR

2 40uA 1mV Rail-to-rail input VSSOP-8 Comparators RoHS

VSSOP-8ROHS3 CompliantActive

microPOWER, Push-Pull Output Comparators

Manufacturer: TI
Manufacturer part #: TLV3202AIDGKR
Store part #: C478075
Package / case: VSSOP-8
Category: Comparators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,351 in stock

#C478075

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹211.51	₹211.51
10+	₹178.64	₹1,786.40
30+	₹157.98	₹4,739.40
100+	₹129.47	₹12,947.00
500+	₹119.90	₹59,950.00
1,000+	₹115.76	₹1,15,760.00

Quantity (min 1)

1 × ₹211.51

₹211.51

excl. GST

₹249.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TLV3202AIDGKR

₹211.51 for 1 + GST

Specifications

Number of Channels: 2
Input Offset Current(Ios): 50pA
Output Mode: CMOS;TTL
Operating Temperature: -40℃~+125℃
Features: Enable/shutdown function;Overvoltage protection
Dual Supply: 1.35V~2.75V;-2.75V~-1.35V
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Output Type: Push-pull
Propagation Delay(tpd): 50ns
Common Mode Rejection Ratio(CMRR): 70dB
Input Hysteresis Voltage (Vhys): 1.2mV
Quiescent Current(Iq): 40uA
Vos - Input Offset Voltage: 1mV
Maximum Power Supply Range (Vdd-Vss): 5.5V
Rail to Rail: Rail-to-rail input
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.144 g

Overview

The TLV3201 and TLV3202 are single- and dualchannel comparators that offer the ultimate combination of high speed (40 ns) and low-power consumption (40 μA), all in extremely small packages with features such as rail-to-rail inputs, low offset voltage (1 mV), and large output drive current. The devices are also very easy to implement in a wide variety of applications where response time is critical. The TLV320x family is available in single (TLV3201) and dual (TLV3202) channel versions, both with push-pull outputs. The TLV3201 is available in 5-pin SOT-23 and 5-pin SC70 packages. The TLV3202 is available in 8-pin SOIC and 8-pin VSSOP packages. All devices are specified for operation across the expanded industrial temperature range of -40°C to 125°C.
