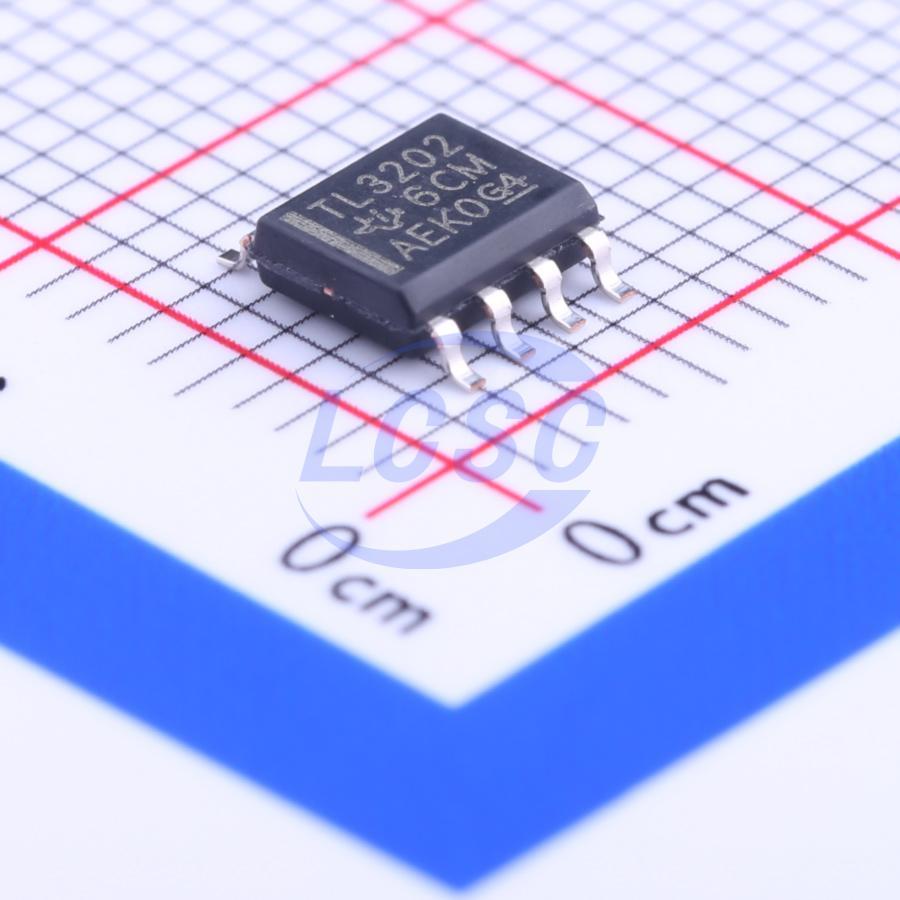

TLV3202AIDR
2 40uA 1mV Rail-to-rail input SOIC-8 Comparators RoHS
microPOWER, Push-Pull Output Comparators
- Manufacturer
- TI
- Manufacturer part #
- TLV3202AIDR
- Store part #
- C129325
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,202 in stock
#C129325
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.96 | ₹121.96 |
| 10+ | ₹98.84 | ₹988.40 |
| 30+ | ₹87.27 | ₹2,618.10 |
| 100+ | ₹72.82 | ₹7,282.00 |
| 500+ | ₹65.94 | ₹32,970.00 |
| 1,000+ | ₹62.51 | ₹62,510.00 |
1 × ₹121.96
₹121.96
excl. GST
₹143.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV3202AIDR
₹121.96 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 50pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/shutdown function;Overvoltage protection
- Dual Supply
- 1.35V~2.75V;-2.75V~-1.35V
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Propagation Delay(tpd)
- 40ns
- Input Hysteresis Voltage (Vhys)
- 1.2mV
- Quiescent Current(Iq)
- 40uA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 5.5V
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.213 g
Overview
The TLV3201 and TLV3202 are single- and dualchannel comparators that offer the ultimate combination of high speed (40 ns) and low-power consumption (40 μ/A), all in extremely small packages with features such as rail-to-rail inputs, low offset voltage (1 mV), and large output drive current. The devices are also very easy to implement in a wide variety of applications where response time is critical. The TLV320x family is available in single (TLV3201) and dual (TLV3202) channel versions, both with push-pull outputs. The TLV3201 is available in 5-pin SOT-23 and 5-pin SC70 packages. The TLV3202 is available in 8-pin SOIC and 8-pin VSSOP packages. All devices are specified for operation across the expanded industrial temperature range of -40°C to 125°C.
Applications
- Inspection Equipment
- Test and Measurement
- High-Speed Sampling Systems
- Telecom
- Portable Communications
Key features
- Low Propagation Delay: 40 ns
- Low Quiescent Current: 40 μA per Channel
- Input Common-Mode Range Extends 200 mV Beyond Either Rail
- Low Input Offset Voltage: 1 mV
- Push-Pull Outputs
- Supply Range: 2.7 V to 5.5 V
- Industrial Temperature Range: -40°C to 125°C
- Small Packages: 5-Pin SC70, 5-Pin SOT-23, 8-Pin SOIC, 8-Pin VSSOP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS3202SR#C49304671COSINE · SOP-8 | COSINE | SOP-8 | 3,900 | ₹37.30 · 3,900 in stock | View |
 | TLV3502AID#C2878167TI · SOIC-8 | TI | SOIC-8 | 65 | ₹484.63 · 65 in stock | View |
 | TLV9032QDRQ1#C3659145TI · SOIC-8 | TI | SOIC-8 | 4 | ₹308.09 · 4 in stock | View |
 | TLV3492AIDR#C2863725TI · SOIC-8 | TI | SOIC-8 | 5 | ₹152.76 · 5 in stock | View |
 | TLV3202AID#C2878318TI · SOIC-8 | TI | SOIC-8 | On request | Price on request | Quote |
