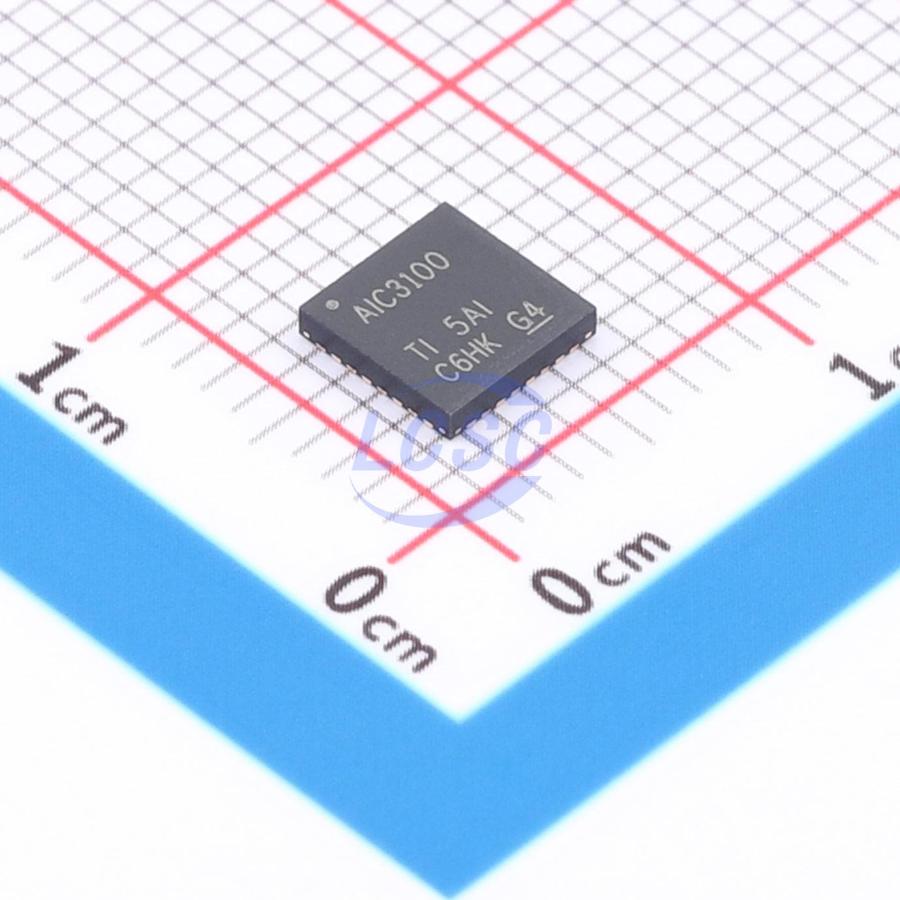

TLV320AIC3100IRHBR

The TLV320AIC3100 is a low-power, highly integrated, high-performance codec which provides a stereo audio DAC, a mono audio ADC, and a mono class-D 4-Ω speaker driver. The TLV320AIC3100 features a high-performance audio codec with 24-bit stereo playback and monaural record functionality. The device integrates several analog features, such as a microphone interface, headphone drivers, and speaker drivers. The TLV320AIC3100 has built-in digital audio processing blocks (PRB) for both the DAC and ADC paths. The digital audio data format is programmable to work with popular audio standard protocols (I²S, left/right-justified) in master, slave, DSP, and TDM modes. Bass boost, treble, or EQ can be supported by the programmable digital signal-processing block. An on-chip PLL provides the high-speed clock needed by the digital signal-processing block. The volume level can be controlled by either pin control or by register control. The audio functions are controlled using the I²C serial bus. The TLV320AIC3100 has a programmable digital sine-wave generator and is available in a 32-pin QFN package.

Applications

• Portable Audio Devices
• Mobile Internet Devices
• Adaptive Filtering Applications

Key features

• Stereo Audio DAC With 95-dB SNR
• Mono Audio ADC With 91-dB SNR
• Supports 8-kHz to 192-kHz Separate DAC and ADC Sample Rates
• Mono Class-D BTL Speaker Driver (2.5 W Into 4 Ω or 1.6 W Into 8 Ω)
• One Differential and Three Single-Ended Inputs With Mixing and Level Control
• Microphone With Bias, Preamp PGA, and AGC
• Built-In Digital Audio Processing Blocks (PRB) With User-Programmable Biquad and FIR Filters
• Digital Mixing Capability
• Programmable Digital Audio Processor for Bass Boost/Treble/EQ With up to Five Biquads for Record and up to Six Biquads for Playback
• Pin Control or Register Control for Digital-Playback Volume-Control Settings
• Digital Sine-Wave Generator for Beep
• Integrated PLL Used for Programmable Digital Audio Processor
• I2S, Left-Justified, Right-Justified, DSP, and TDM Audio Interfaces
• I²C Control With Register Auto-Increment
• Full Power-Down Control
• Power Supplies:
• Analog: 2.7 V–3.6 V
• Digital Core: 1.65 V–1.95 V
• Digital I/O: 1.1 V–3.6 V
• Class-D: 2.7 V–5.5 V (SPKVDD ≥ AVDD)
• 5-mm × 5-mm 32-QFN Package
