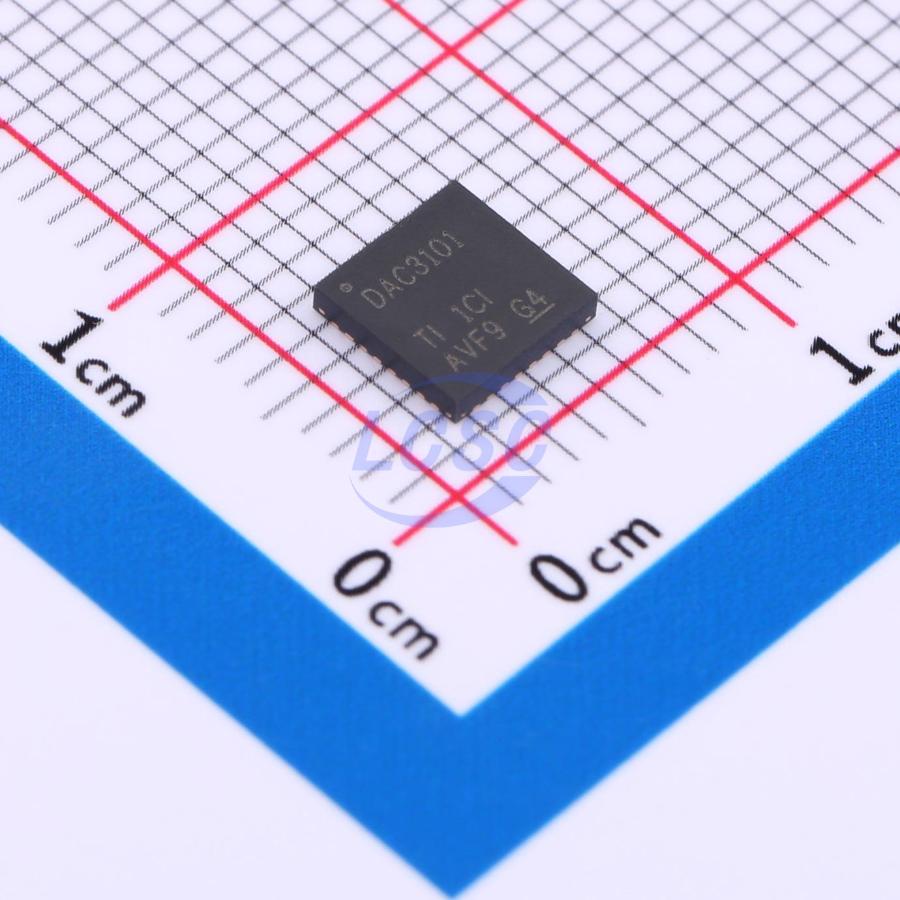

TLV320DAC3101IRHBR

The TLV320DAC3101 device is a highly integrated, low-power, high-performance DAC with an optional digital audio processing block and 24-bit stereo playback capabilities. This device integrates a headphone driver and a speaker driver. It has a set of built-in processing blocks for digital audio processing. The digital audio data format is programmable, enabling it to adapt to common audio standard protocols (I2S, left-justified, and right-justified) in master mode, slave mode, DSP mode, and TDM mode. The programmable digital signal processing block can support bass boost, treble, or EQ functions. The on-chip PLL provides the high-speed clock required by the digital signal processing block. The volume can be controlled by pins or registers. The audio functions are controlled via the I2C serial bus. The TLV320DAC3101 device features a programmable digital sine wave generator and comes in a 32-pin QFN package.

Applications

• Portable audio devices
• Mobile internet devices
• E-readers

Key features

• Stereo audio DAC with 95dB SNR
• Sample rates from 8kHz to 192kHz
• Stereo 1.29W Class-D BTL 8Ω speaker driver with direct battery connection
• 25 built-in processing blocks (PRB_P1 – PRB_P25) providing biquad filters, DRC, and 3D
• Digital sine wave tone generator for beeps and key clicks (PRB_P25)
• User-programmable biquad and FIR filters
• Two single-ended inputs with mixing and output level control for stereo headphone/line output and Class-D speaker output
• Microphone bias
• Headphone detection with digital mixing
• Pin or register control for digital playback volume settings
• Programmable PLL for flexible clock generation
• I2S, left-justified, right-justified, DSP, and TDM audio interfaces
• I2C control with register auto-increment
• Complete power-down control
• Power supply: Analog: 2.7V – 3.6V; Digital core: 1.65V – 1.95V; Digital I/O: 1.1V – 3.6V; Class-D: 2.7V – 5.5V (SPLVDD and SPRVDD both ≥ AVDD)
• 5mm × 5mm 32-pin QFN package
